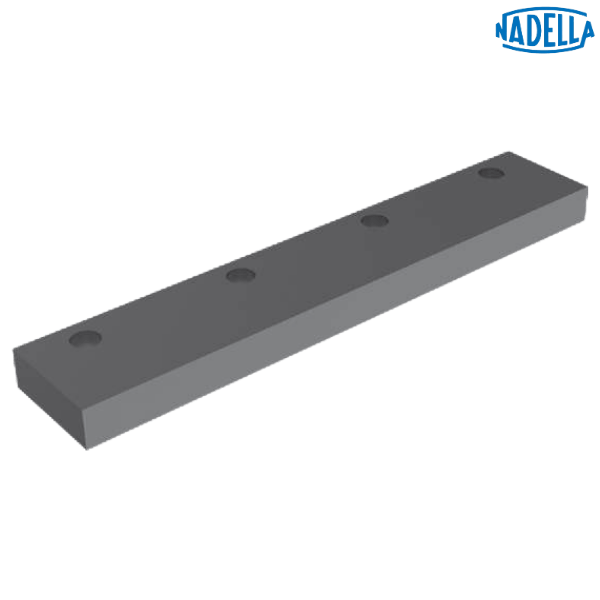

GP 3617 M NADELLA

Brand - NADELLA
Item Number - GP 3617 M NADELLA
Category - Heavy-Line Guide Rail in Steel, Rough Ground Raceways

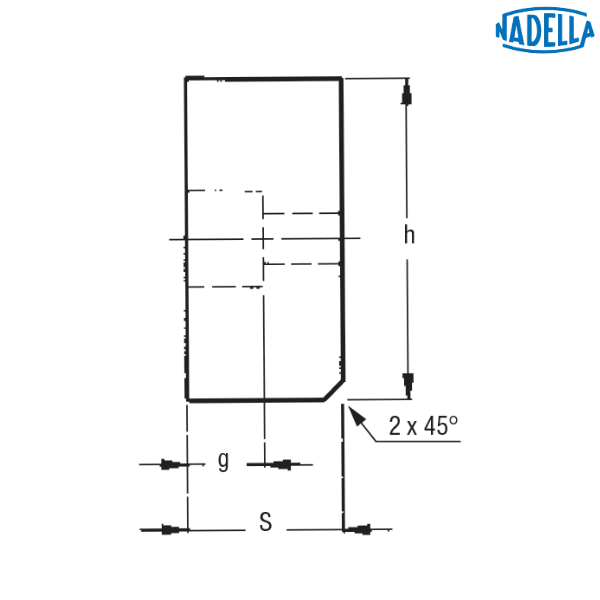

Principal Dimensions & Load Ratings (Metric):
Dimension (h) - 36 (± 0.05) mm
Dimension (S) - 17 (± 0.05) mm
Dimension (D) - 6.5 mm
Dimension (G) - 11 mm
Dimension (g) - 6.8 mm
Dimension (e) - 12.5 mm
Dimension (l) - 120 mm
Dimension (l1) - 50 mm
Weight without Holes - 4.8 kg/m

Description of Suffixes and Prefixes:
GP...M - Rail in steel, ground raceways for Heavy-Line system

Other salient points to be noted:
• Maximum length in single element L = 3000 mm
• Longer rails are made by juxtaposing several elements with ground end

Rail Finishing:
• Material: induction hardened steel
• Induction hardened on four sides
• Surface finished by tangential grinding (M)

Optional Features:
• Ground one end: side of the first hole (1R), side of the last hole (2R)
• Ground both ends (RR)
• Chemical nickel plating (NW)

Standard Designation Examples:
• GP 2626 M 760
• GP 2626 M 1050
• GP 2626 M 2600

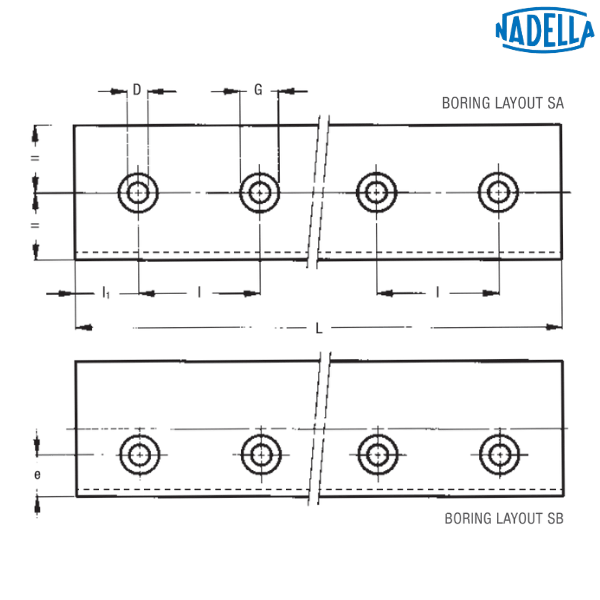

Hole Layout:
• For Holes according to catalogue, suffix will be SB, e.g. GP 2626 M 2600 SB
• For Finishes to drawing, suffix will be NZ, e.g. GP 2626 MT 2600 NZ
• For Without holes, suffix will be NF, e.g. GP 2626 M 2600 NF
