Description
Brand - NADELLA
Item Number - GLA 52.16 NADELLA

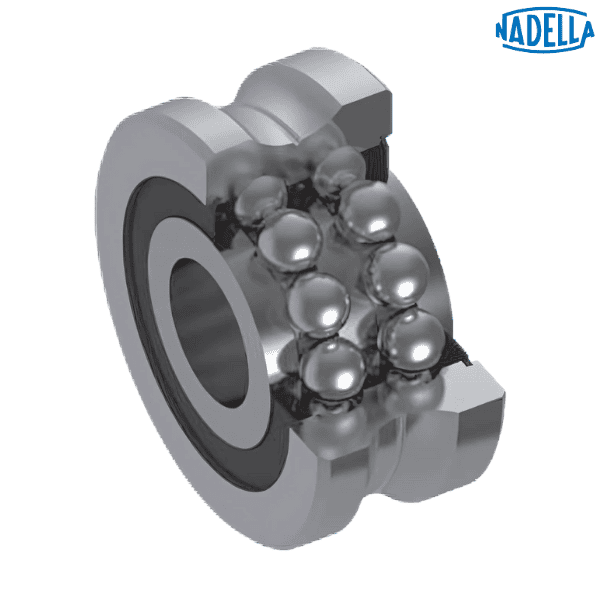

Category - Guide Wheel with Double Row of Balls with Oblique Contact, with “Gothic Arch”

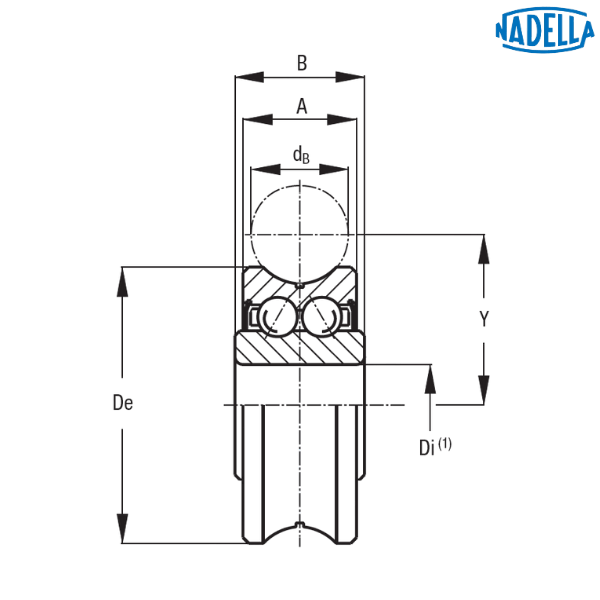

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 52 mm
Dimension (dB) - 16 mm
Dimension (Di) - 20 (+0 / –0.008) mm
Dimension (Y) - 31.5 mm
Dimension (A) - 20.6 mm
Dimension (B) - 22.6 mm
Dynamic Load (Cw)** - 19000 N
Radial Limit Load (Cor) - 10500 N
Axial Limit Load (Coa) - 3300 N
Life Coefficient (X) - 1
Life Coefficient (Y) - 2.73
Weight - 0.23 kg
Description of Prefix:
GLA - Guide roller with double row of balls with oblique contact, with “gothic arch” profile for U-Line system
Other salient points to be noted:
** Cw basic load for 100 km
• Pressure angle α for load calculation: 60°
• Standard shields ZZ type (GLA 52.16 with RS seals type)
♦ ♦ Images are for representation purposes only
