Description
Brand - ZEN
Item Number - GK80-DO ZEN
Category - Hydraulic Rod Ends

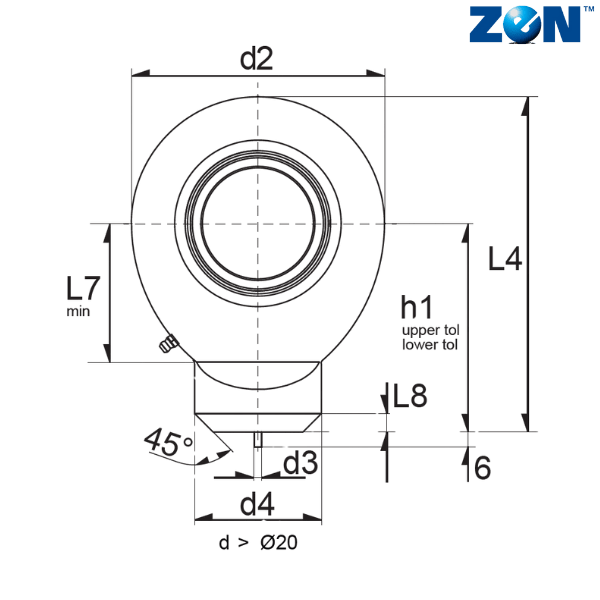

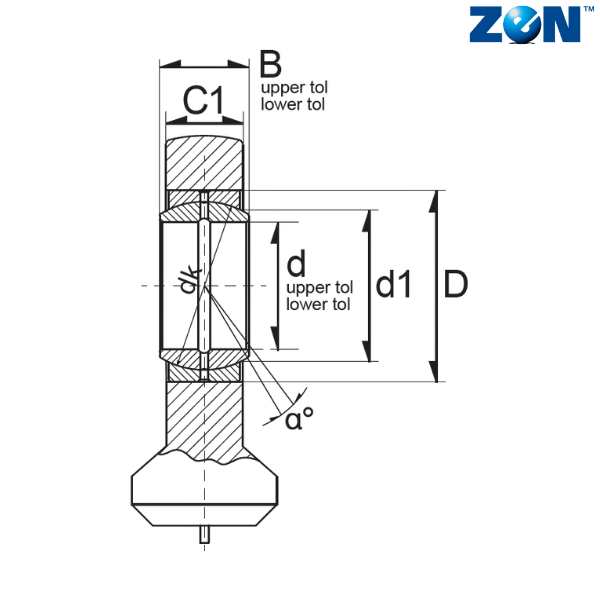

Inner Diameter (d) mm - 80
d2 (mm) - 180
Width (B) mm - 55
C1 (mm) - 47
D (mm) - 120
d1 (mm) - 89.4
d3 (mm) - 6
d4 (mm) - 95
dk (mm) - 105
h1 (mm) - 141
L4 (mm) - 231
L7 (mm) - 98
L8 (mm) - 5
α - 6
Weight (kg) - 8.7
Dynamic Load Rating (N) - 361800
Static Load Rating (N) - 561600

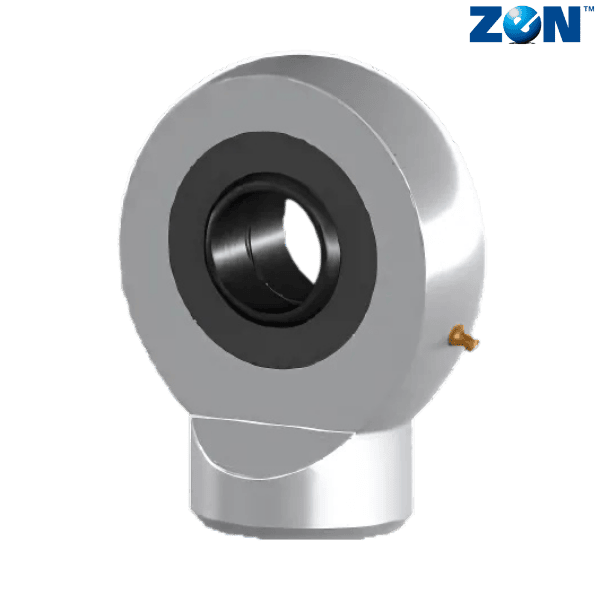

** Images are for representation purposes only
