Description
Brand - ZEN
Item Number - GK70-DO ZEN
Category - Hydraulic Rod Ends

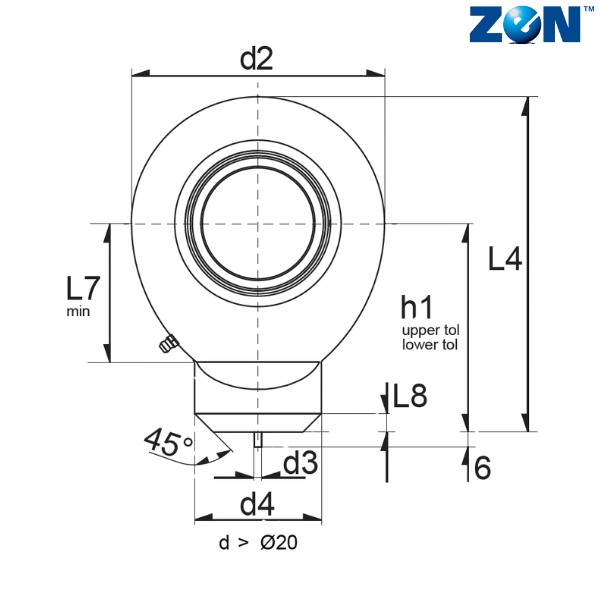

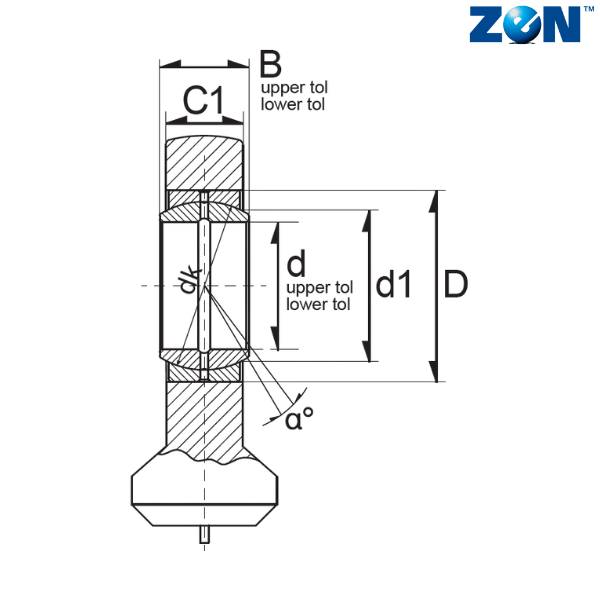

Inner Diameter (d) mm - 70
d2 (mm) - 160
Width (B) mm - 49
C1 (mm) - 42
D (mm) - 105
d1 (mm) - 77.9
d3 (mm) - 6
d4 (mm) - 80
dk (mm) - 92
h1 (mm) - 115
L4 (mm) - 195
L7 (mm) - 86
L8 (mm) - 5
α - 6
Weight (kg) - 6.6
Dynamic Load Rating (N) - 281700
Static Load Rating (N) - 459900

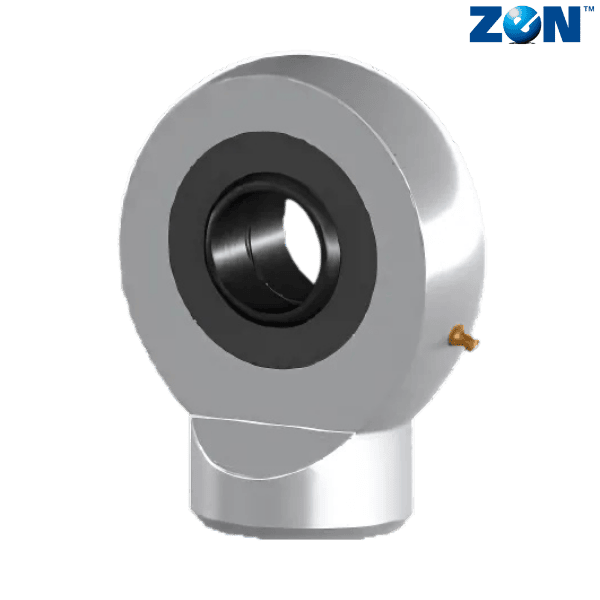

** Images are for representation purposes only
