Description
Brand - ZEN
Item Number - GK60-DO ZEN
Category - Hydraulic Rod Ends

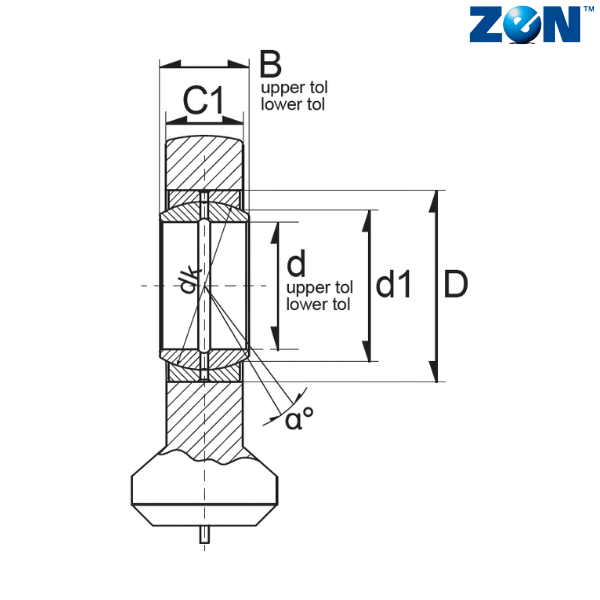

Inner Diameter (d) mm - 60

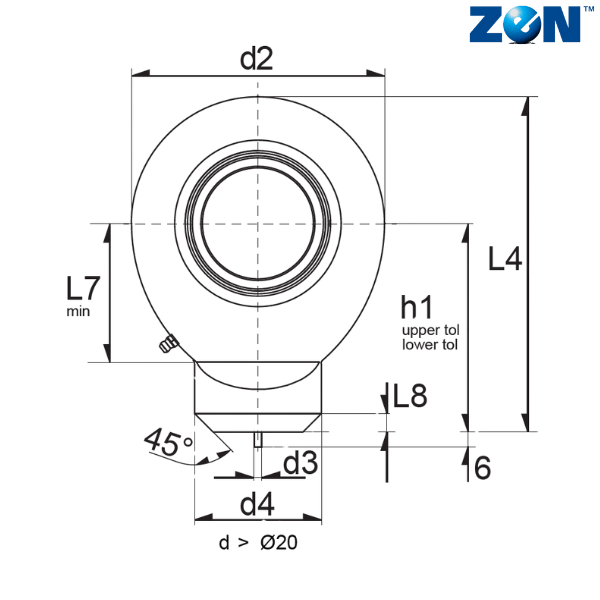

d2 (mm) - 135
Width (B) mm - 44
C1 (mm) - 38
D (mm) - 90
d1 (mm) - 66.8
d3 (mm) - 6
d4 (mm) - 70
dk (mm) - 80
h1 (mm) - 100
L4 (mm) - 167.5
L7 (mm) - 72.5
L8 (mm) - 4
α - 6
Weight (kg) - 3.9
Dynamic Load Rating (N) - 220500
Static Load Rating (N) - 350100

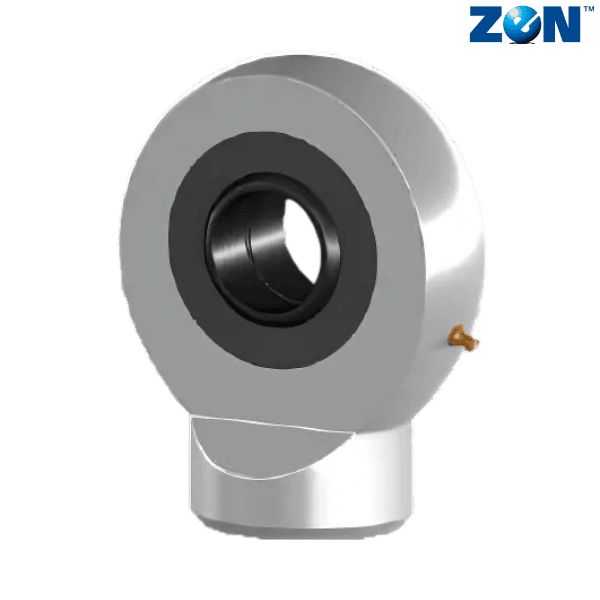

** Images are for representation purposes only
