Description
Brand - ZEN
Item Number - GK50-DO ZEN
Category - Hydraulic Rod Ends

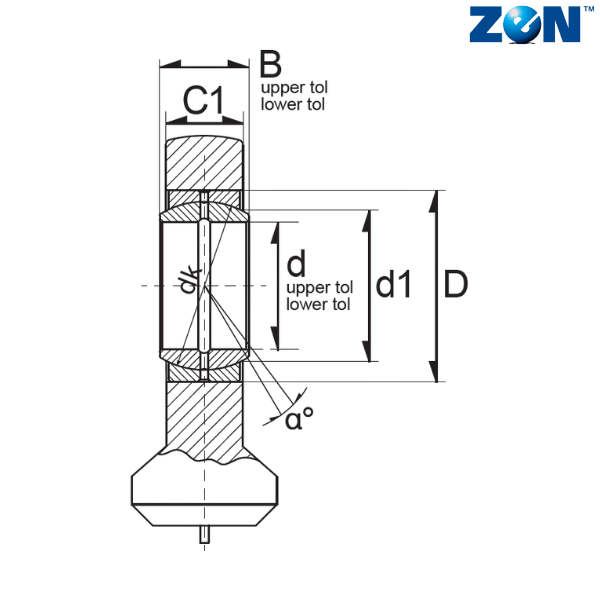

Inner Diameter (d) mm - 50

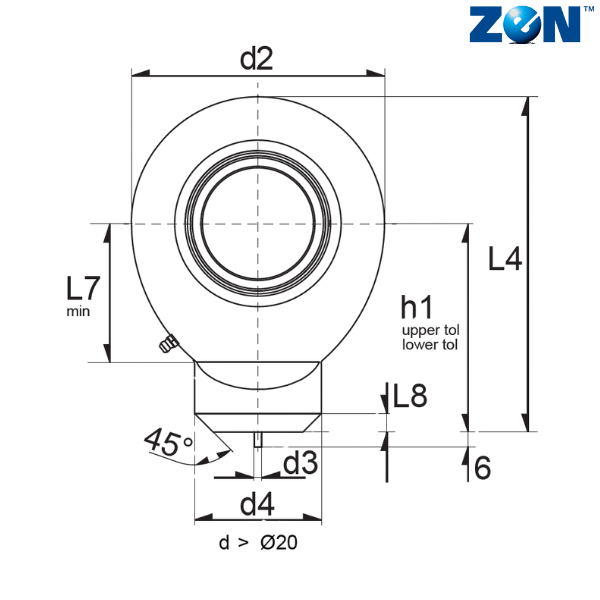

d2 (mm) - 112
Width (B) mm - 35
C1 (mm) - 30
D (mm) - 75
d1 (mm) - 55.9
d3 (mm) - 6
d4 (mm) - 62
dk (mm) - 66
h1 (mm) - 88
L4 (mm) - 144
L7 (mm) - 59
L8 (mm) - 4
α - 6
Weight (kg) - 2.5
Dynamic Load Rating (N) - 141300
Static Load Rating (N) - 226800

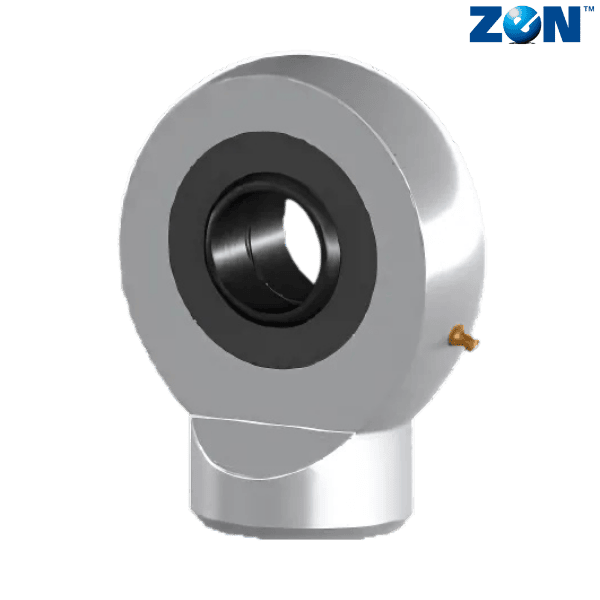

** Images are for representation purposes only
