Description
Brand - ZEN
Item Number - GK45-DO ZEN
Category - Hydraulic Rod Ends

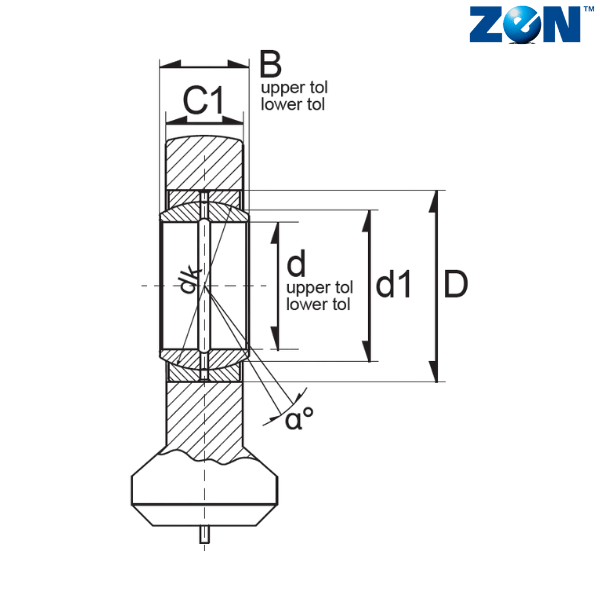

Inner Diameter (d) mm - 45

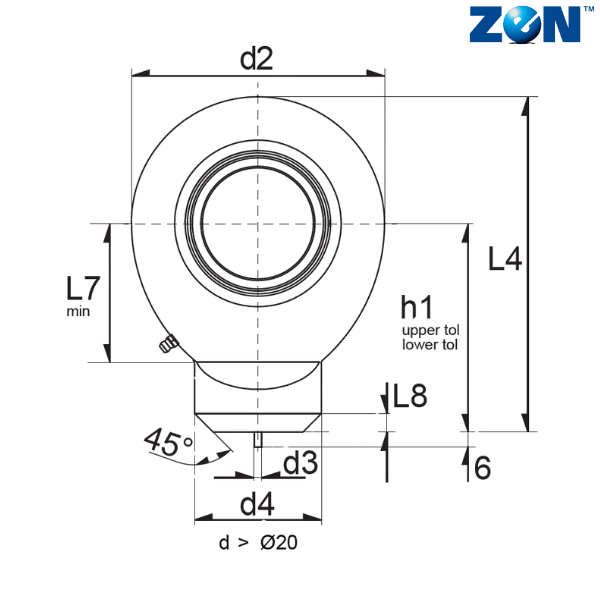

d2 (mm) - 102
Width (B) mm - 32
C1 (mm) - 27
D (mm) - 68
d1 (mm) - 50.8
d3 (mm) - 6
d4 (mm) - 58
dk (mm) - 60
h1 (mm) - 77
L4 (mm) - 128
L7 (mm) - 52
L8 (mm) - 4
α - 7
Weight (kg) - 1.8
Dynamic Load Rating (N) - 115200
Static Load Rating (N) - 187200

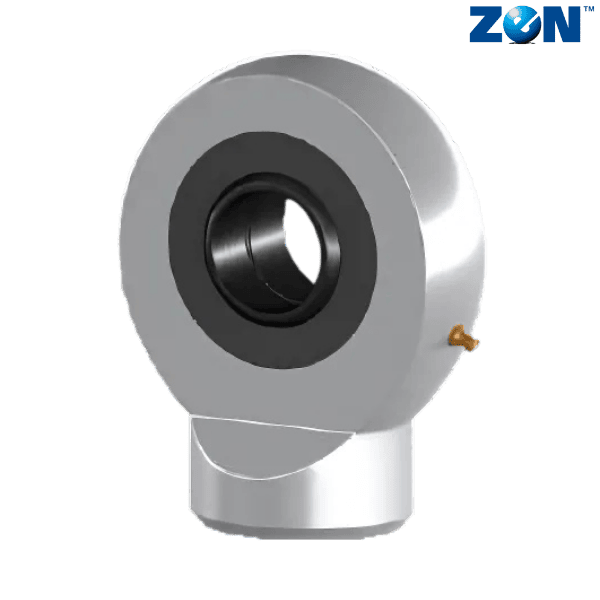

** Images are for representation purposes only
