Description
Brand - ZEN
Item Number - GK40-DO ZEN
Category - Hydraulic Rod Ends

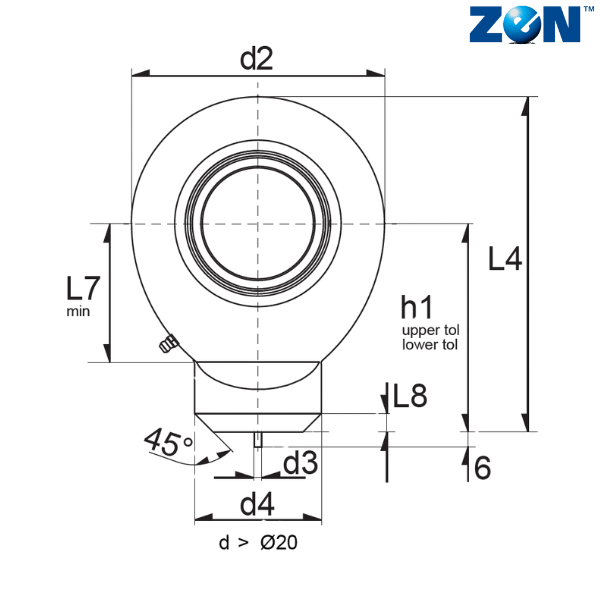

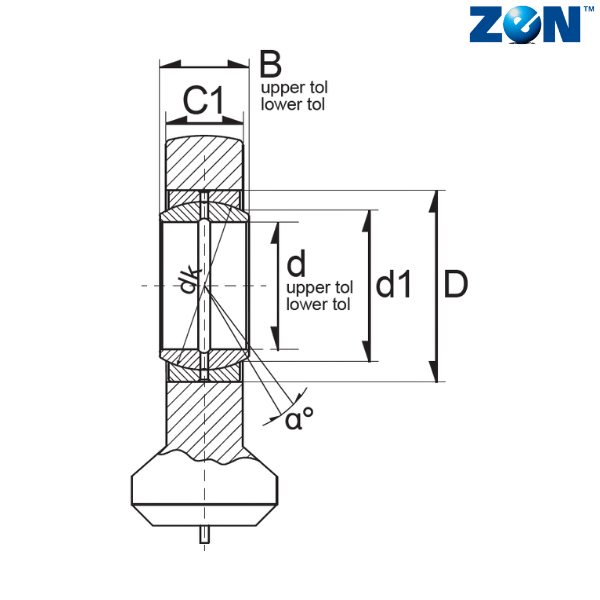

Inner Diameter (d) mm - 40
d2 (mm) - 92
Width (B) mm - 28
C1 (mm) - 23
D (mm) - 62
d1 (mm) - 45
d3 (mm) - 4
d4 (mm) - 52
dk (mm) - 53
h1 (mm) - 69
L4 (mm) - 115
L7 (mm) - 48
L8 (mm) - 4
α - 7
Weight (kg) - 1.3
Dynamic Load Rating (N) - 89190
Static Load Rating (N) - 140400

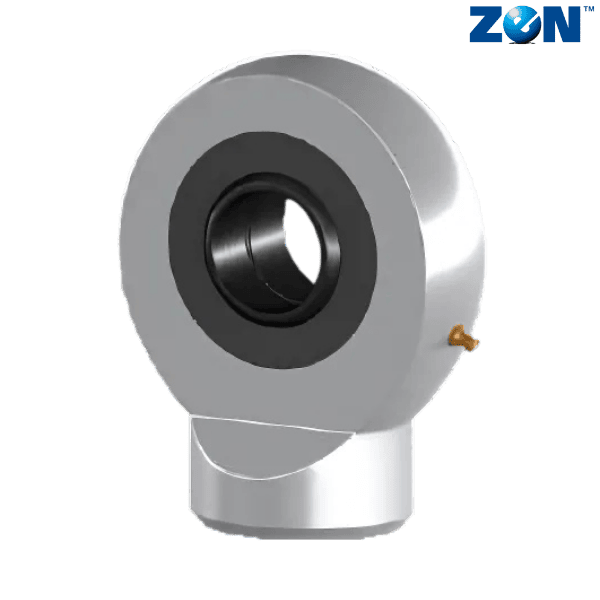

** Images are for representation purposes only
