Description
Brand - ZEN
Item Number - GK35-DO ZEN
Category - Hydraulic Rod Ends

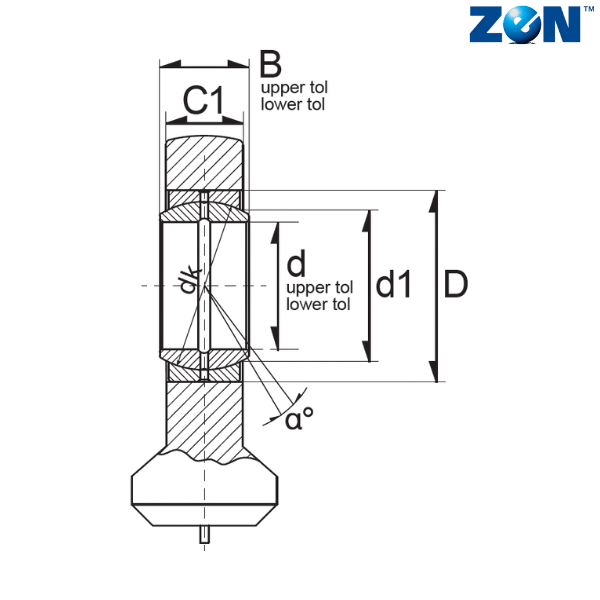

Inner Diameter (d) mm - 35

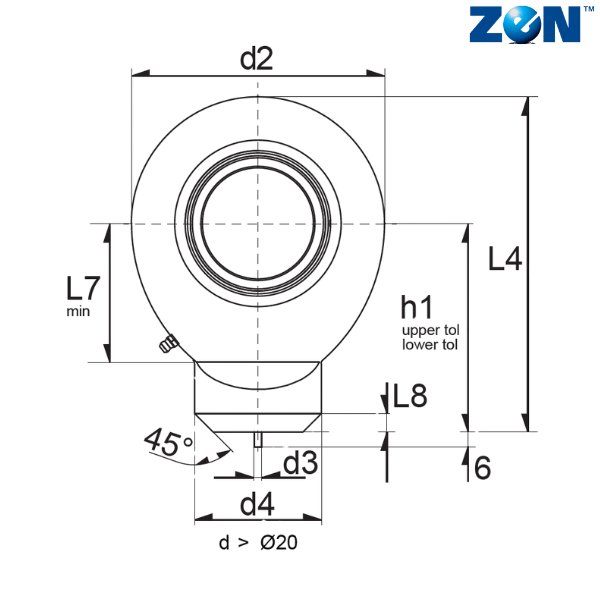

d2 (mm) - 82
Width (B) mm - 25
C1 (mm) - 21
D (mm) - 55
d1 (mm) - 39.8
d3 (mm) - 4
d4 (mm) - 47
dk (mm) - 47
h1 (mm) - 61
L4 (mm) - 102
L7 (mm) - 43
L8 (mm) - 3
α - 6
Weight (kg) - 0.96
Dynamic Load Rating (N) - 71910
Static Load Rating (N) - 115200

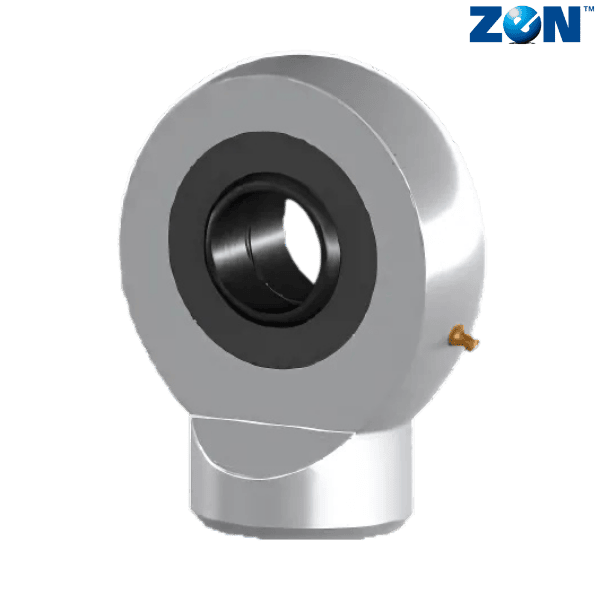

** Images are for representation purposes only
