Description
Brand - ZEN
Item Number - GK30-DO ZEN
Category - Hydraulic Rod Ends

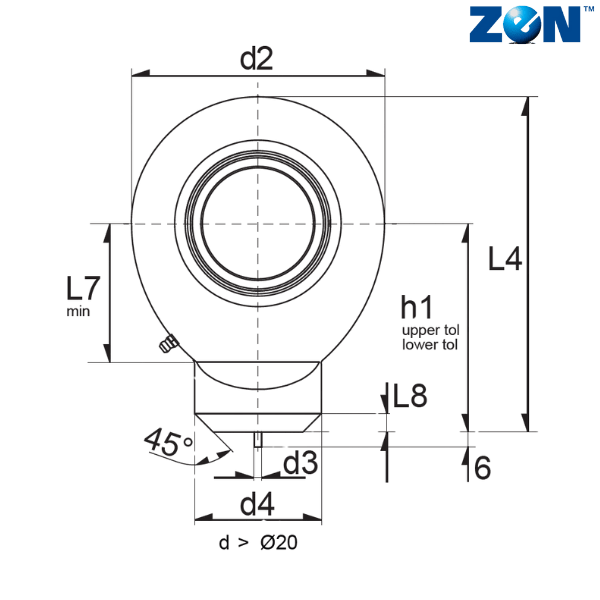

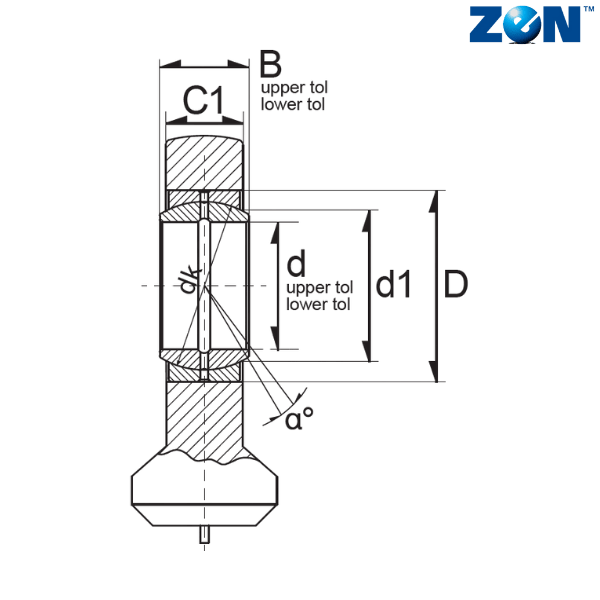

Inner Diameter (d) mm - 30
d2 (mm) - 73
Width (B) mm - 22
C1 (mm) - 19
D (mm) - 47
d1 (mm) - 34.2
d3 (mm) - 4
d4 (mm) - 40
dk (mm) - 40.7
h1 (mm) - 51
L4 (mm) - 87.5
L7 (mm) - 37.5
L8 (mm) - 3
α - 6
Weight (kg) - 0.64
Dynamic Load Rating (N) - 56070
Static Load Rating (N) - 86130

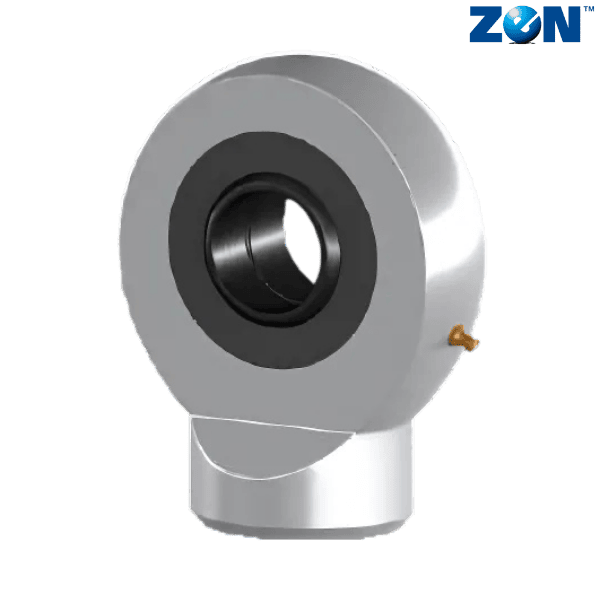

** Images are for representation purposes only
