Description
Brand - ZEN
Item Number - GK25-DO ZEN
Category - Hydraulic Rod Ends

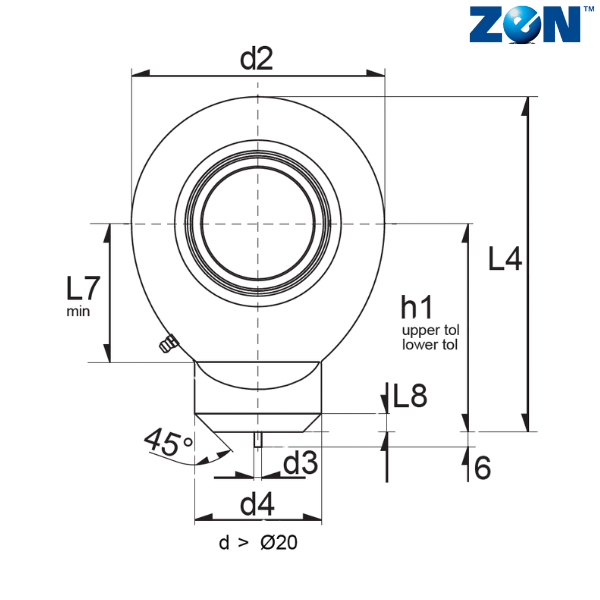

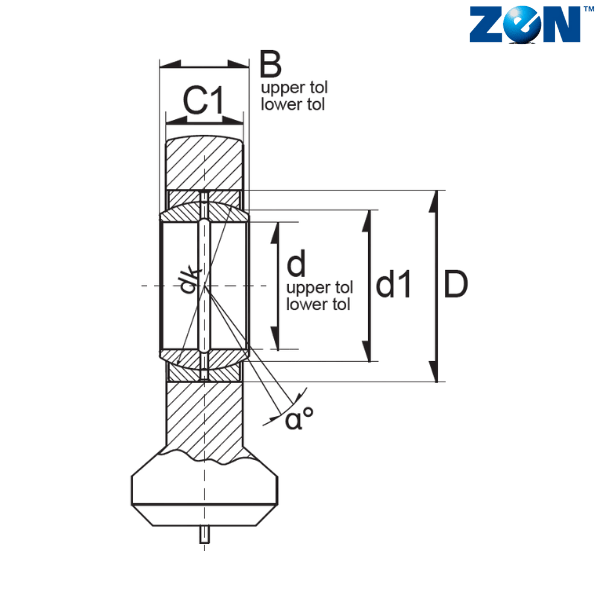

Inner Diameter (d) mm - 25
d2 (mm) - 64
Width (B) mm - 20
C1 (mm) - 17
D (mm) - 42
d1 (mm) - 29.3
d3 (mm) - 4
d4 (mm) - 33.5
dk (mm) - 35.5
h1 (mm) - 45
L4 (mm) - 77
L7 (mm) - 33
L8 (mm) - 3
α - 7
Weight (kg) - 0.43
Dynamic Load Rating (N) - 43470
Static Load Rating (N) - 63720

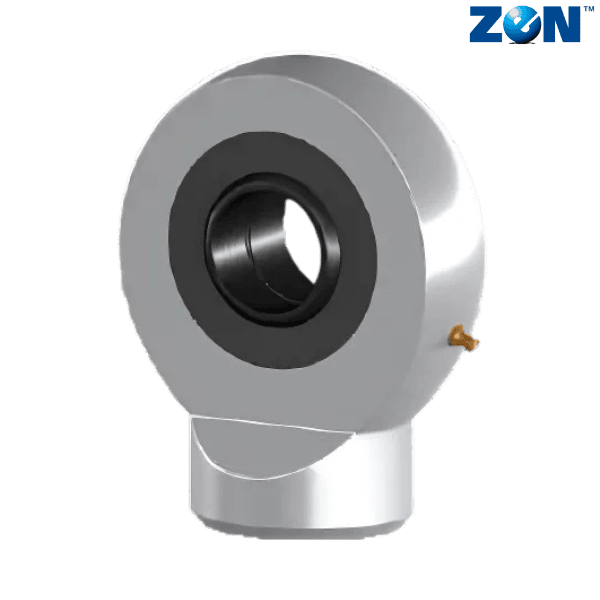

** Images are for representation purposes only
