Description
Brand - ZEN
Item Number - GK20-DO ZEN
Category - Hydraulic Rod Ends

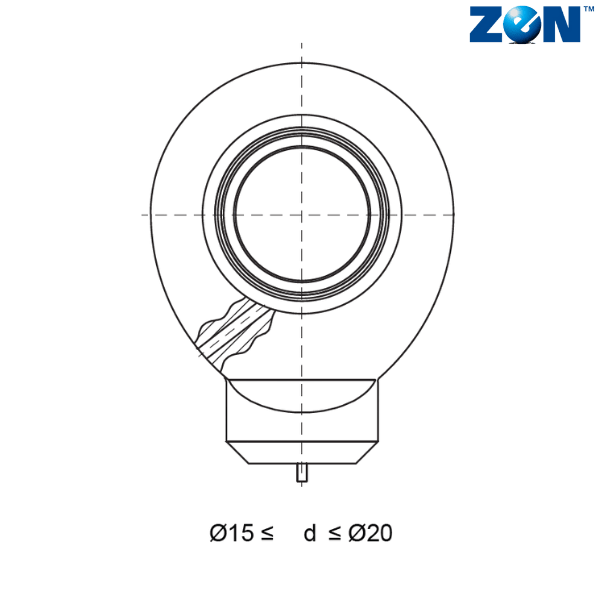

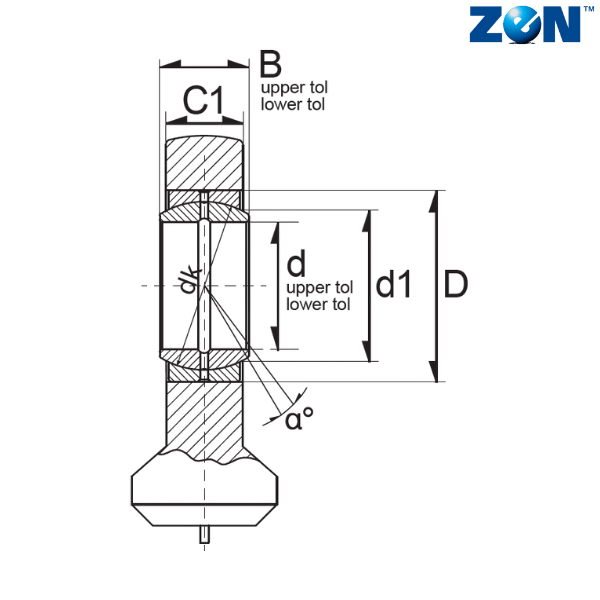

Inner Diameter (d) mm - 20
d2 (mm) - 53
Width (B) mm - 16
C1 (mm) - 13
D (mm) - 35
d1 (mm) - 24.2
d3 (mm) - 4
d4 (mm) - 27.5
dk (mm) - 29
h1 (mm) - 38
L4 (mm) - 64.5
L7 (mm) - 27.5
L8 (mm) - 2
α - 9
Weight (kg) - 0.23
Dynamic Load Rating (N) - 26640
Static Load Rating (N) - 48330

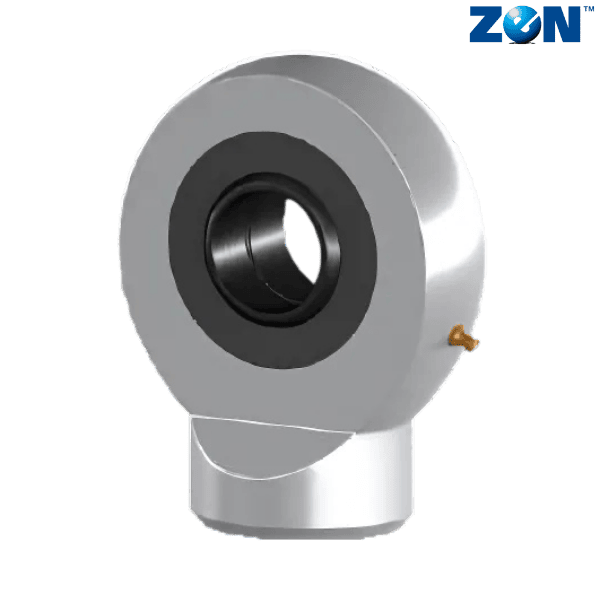

** Images are for representation purposes only
