Description
Brand - ZEN
Item Number - GK17-DO ZEN
Category - Hydraulic Rod Ends

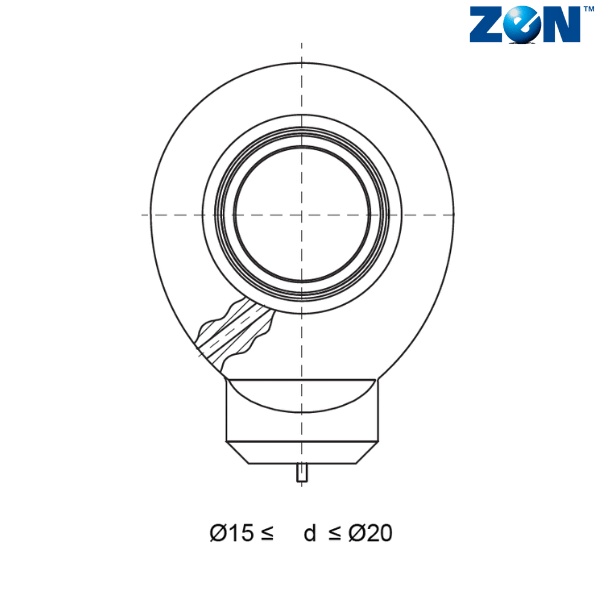

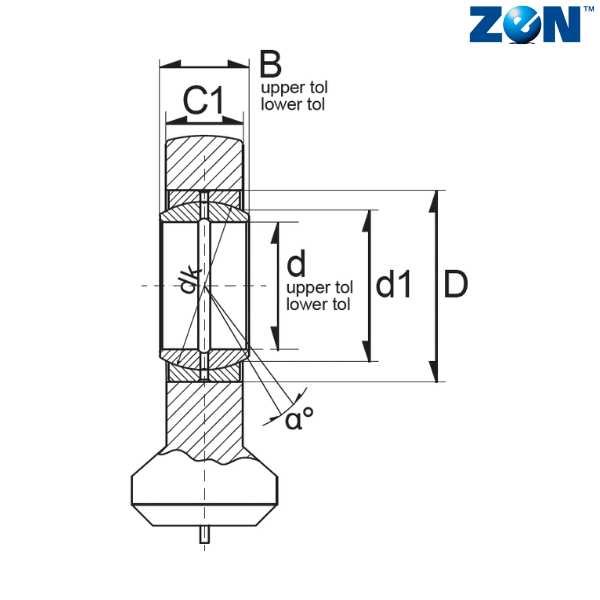

Inner Diameter (d) mm - 17
d2 (mm) - 46
Width (B) mm - 14
C1 (mm) - 11
D (mm) - 30
d1 (mm) - 20.7
d3 (mm) - 4
d4 (mm) - 24
dk (mm) - 25
h1 (mm) - 35
L4 (mm) - 58
L7 (mm) - 23
L8 (mm) - 2
α - 10
Weight (kg) - 0.19
Dynamic Load Rating (N) - 19170
Static Load Rating (N) - 36090

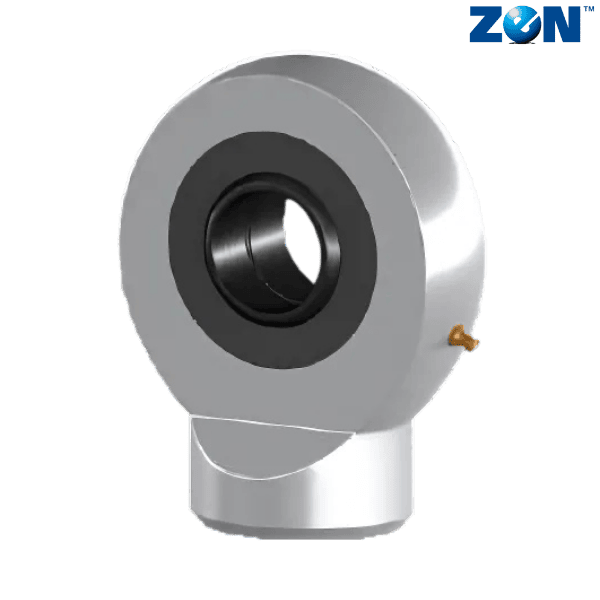

** Images are for representation purposes only
