Description
Brand - ZEN
Item Number - GK15-DO ZEN
Category - Hydraulic Rod Ends

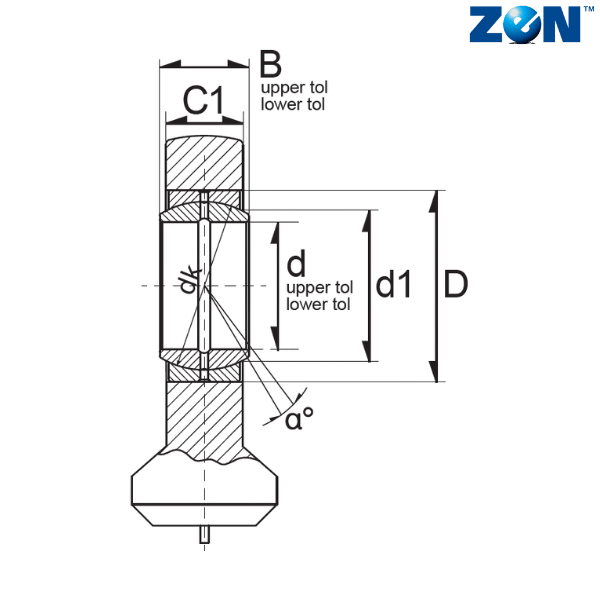

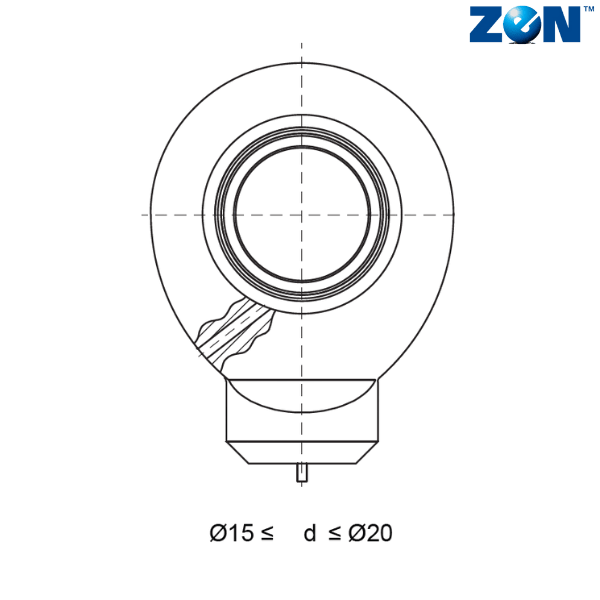

Inner Diameter (d) mm - 15
d2 (mm) - 40
Width (B) mm - 12
C1 (mm) - 10
D (mm) - 26
d1 (mm) - 18.4
d3 (mm) - 4
d4 (mm) - 21
dk (mm) - 22
h1 (mm) - 31
L4 (mm) - 51
L7 (mm) - 20
L8 (mm) - 2
α - 8
Weight (kg) - 0.12
Dynamic Load Rating (N) - 15210
Static Load Rating (N) - 28620

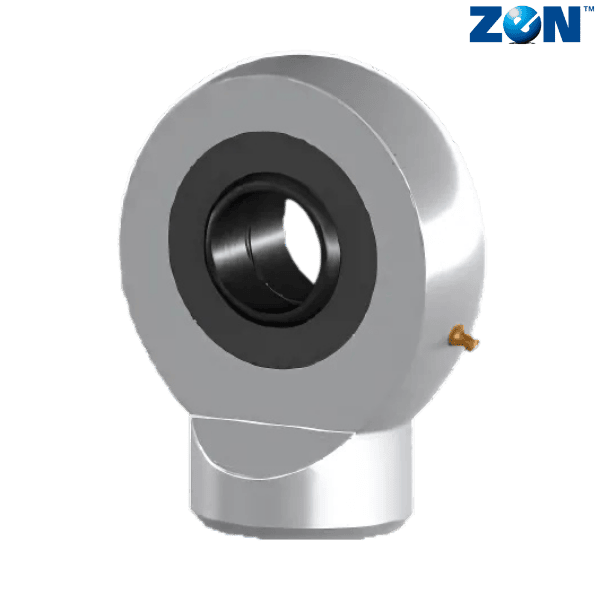

** Images are for representation purposes only
