Description
Brand - ZEN
Item Number - GK12-DO ZEN
Category - Hydraulic Rod Ends

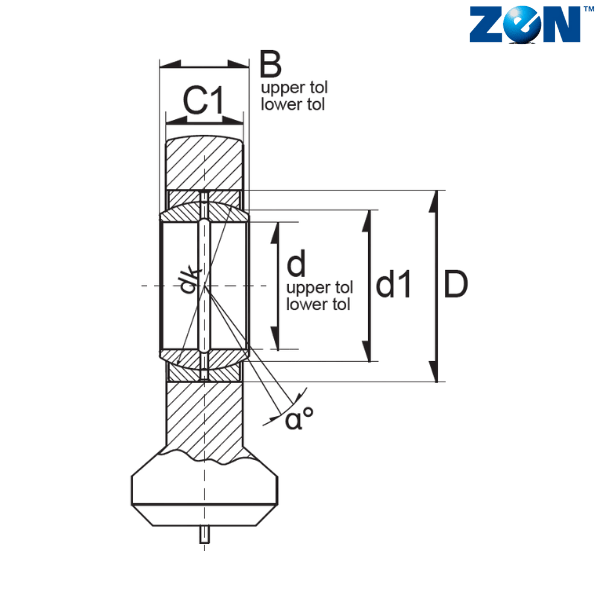

Inner Diameter (d) mm - 12
d2 (mm) - 34
Width (B) mm - 10
C1 (mm) - 8
D (mm) - 22
d1 (mm) - 15
d3 (mm) - 3
d4 (mm) - 17.5
dk (mm) - 18
h1 (mm) - 27
L4 (mm) - 44
L7 (mm) - 18
L8 (mm) - 1.5
α - 11
Weight (kg) - 0.066
Dynamic Load Rating (N) - 9720
Static Load Rating (N) - 19440

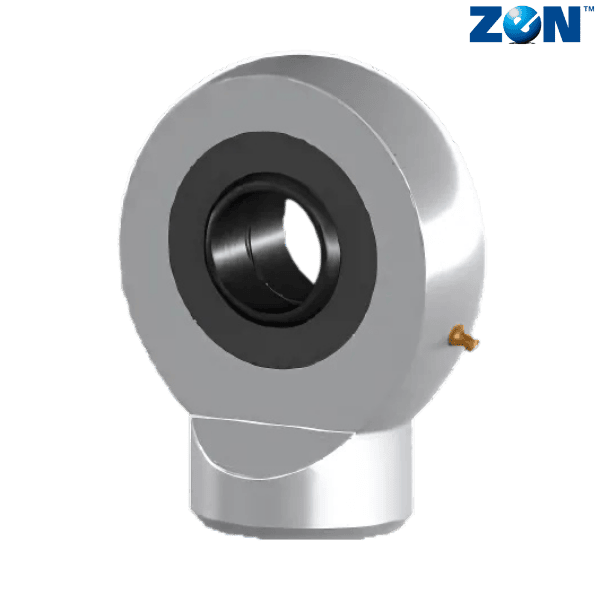

** Images are for representation purposes only
