Description
Brand - ZEN
Item Number - GK10-DO ZEN
Category - Hydraulic Rod Ends

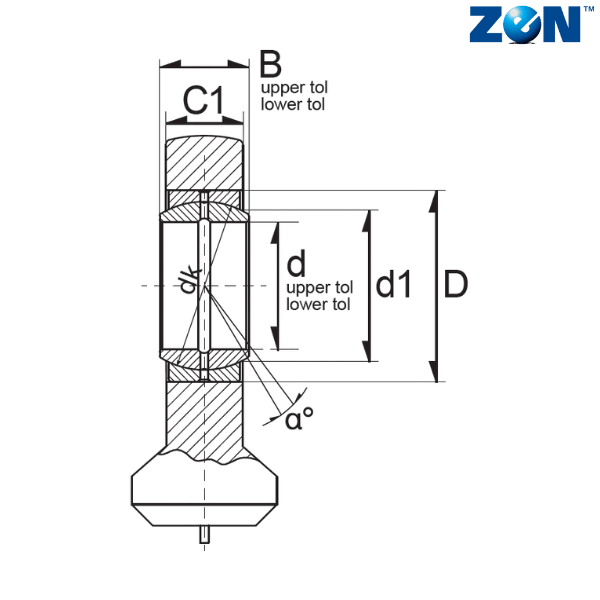

Inner Diameter (d) mm - 10
d2 (mm) - 29
Width (B) mm - 9
C1 (mm) - 7
D (mm) - 19
d1 (mm) - 13.2
d3 (mm) - 3
d4 (mm) - 15
dk (mm) - 16
h1 (mm) - 24
L4 (mm) - 38.5
L7 (mm) - 15
L8 (mm) - 1.5
α - 12
Weight (kg) - 0.041
Dynamic Load Rating (N) - 7335
Static Load Rating (N) - 14040

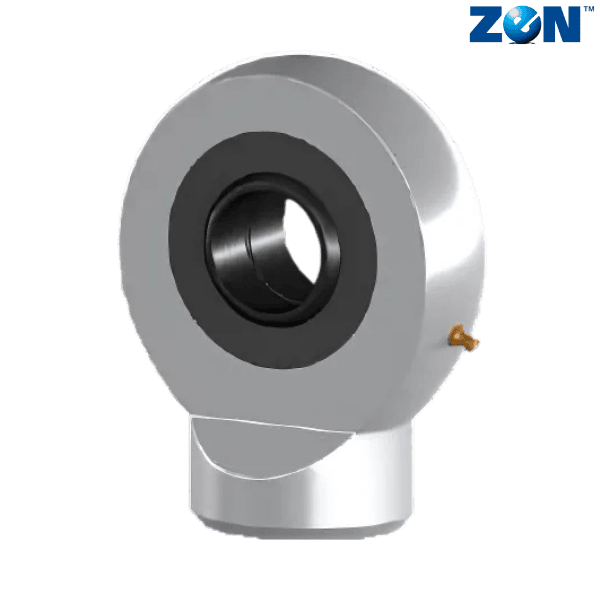

** Images are for representation purposes only
