Description
Brand - ZEN
Item Number - GIR80-UK-2RS ZEN
Category - Rod Ends

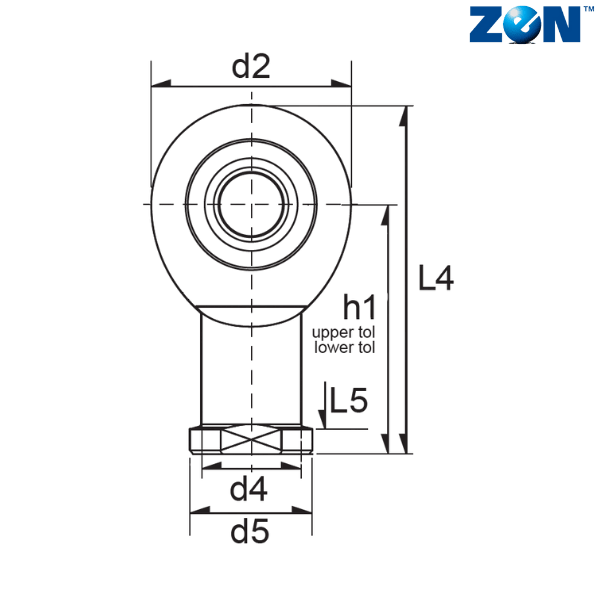

d (mm) - 80
d2 (mm) - 180
L4 (mm) - 320
B (mm) - 55
C1 (mm) - 47
d3 - M64x4
d4 (mm) - 95
d5 (mm) - 110
dk (mm) - 105
h1 (mm) - 230
L3 (mm) - 85
L5 (mm) - 25
W (mm) - 100
α - 6
Weight (kg) - 12
Dynamic Load Rating (N) - 1017000
Static Laod Rating (N) - 621000
Notes :
2RS - Rubber Seals
Maintenance-Free Rod Ends
** Images are for representation purposes only
