Description
Brand - ZEN
Item Number - GIR70-UK-2RS ZEN
Category - Rod Ends

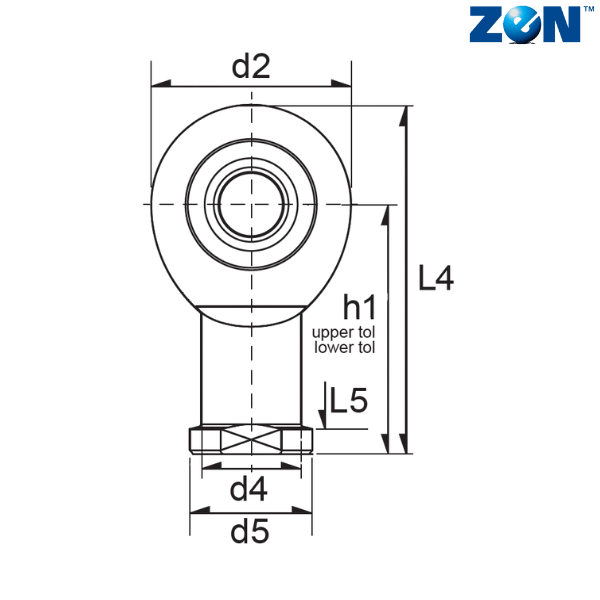

d (mm) - 70
d2 (mm) - 160
L4 (mm) - 280
B (mm) - 49
C1 (mm) - 42
d3 - M56x4
d4 (mm) - 80
d5 (mm) - 98
dk (mm) - 92
h1 (mm) - 200
L3 (mm) - 80
L5 (mm) - 20
W (mm) - 85
α - 6
Weight (kg) - 8.6
Dynamic Load Rating (N) - 796500
Static Laod Rating (N) - 507600
Notes :
2RS - Rubber Seals
Maintenance-Free Rod Ends
** Images are for representation purposes only
