Description
Brand - ZEN
Item Number - GIR50-UK-2RS ZEN
Category - Rod Ends

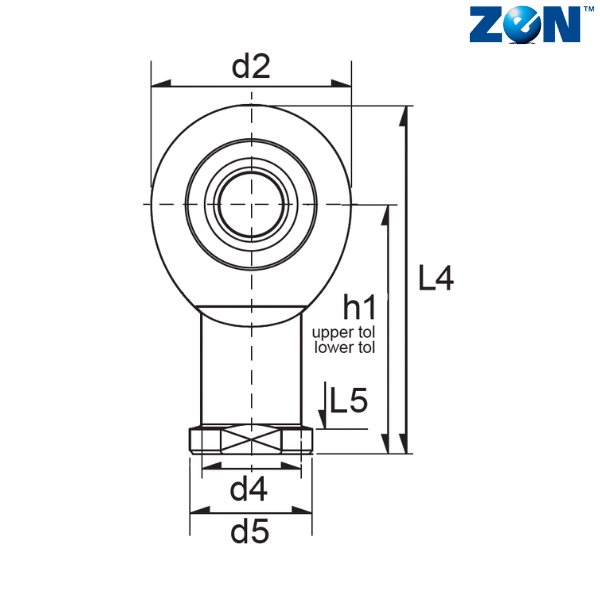

d (mm) - 50
d2 (mm) - 112
L4 (mm) - 216
B (mm) - 35
C1 (mm) - 30
d3 - M45x3
d4 (mm) - 62
d5 (mm) - 75
dk (mm) - 66
h1 (mm) - 160
L3 (mm) - 68
L5 (mm) - 20
W (mm) - 65
α - 6
Weight (kg) - 3.5
Dynamic Load Rating (N) - 397800
Static Laod Rating (N) - 281700
Notes :
2RS - Rubber Seals
Maintenance-Free Rod Ends
** Images are for representation purposes only
