Description
Brand - ZEN
Item Number - GIR50-DO-2RS ZEN
Category - Rod Ends

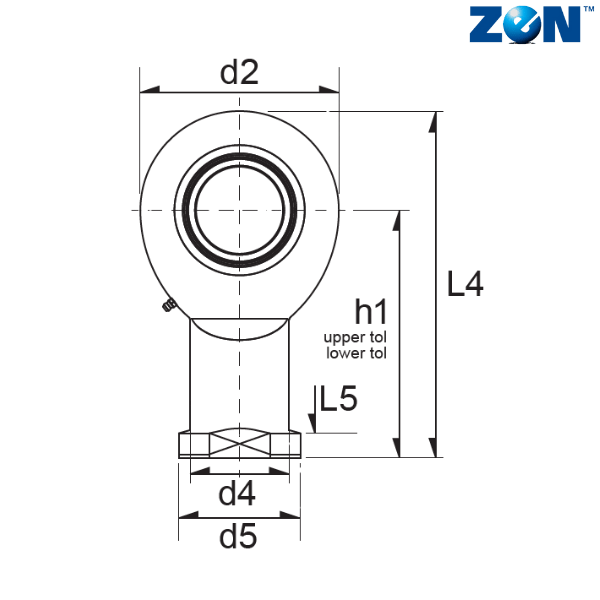

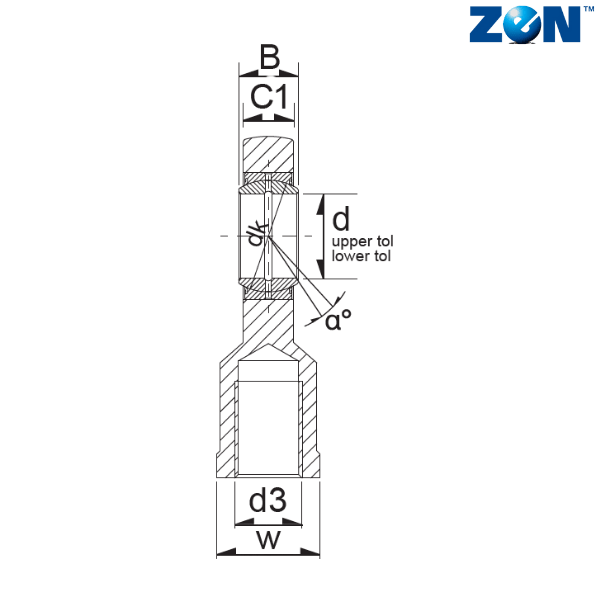

d (mm) - 50
d2 (mm) - 112
L4 (mm) - 216
B (mm) - 35
C1 (mm) - 30
D (mm) - 75
d1 (mm) - 56
d3 - M45X3
d4 (mm) - 62
d5 (mm) - 75
dk (mm) - 66
h1 (mm) - 160
L3 (mm) - 68
L5 (mm) - 20
L7 (mm) - 60
R1 (mm) - 0.6
W (mm) - 65
α - 6
Weight (kg) - 3.54
Dynamic Load Rating (N) - 141300
Static Load Rating (N) - 282600
Radial Clearance - 0.043-0.12
Notes :
2RS - Rubber Seals
Requiring Maintenance
** Images are for representation purposes only
