Description
Brand - ZEN
Item Number - GIR45-UK-2RS ZEN
Category - Rod Ends

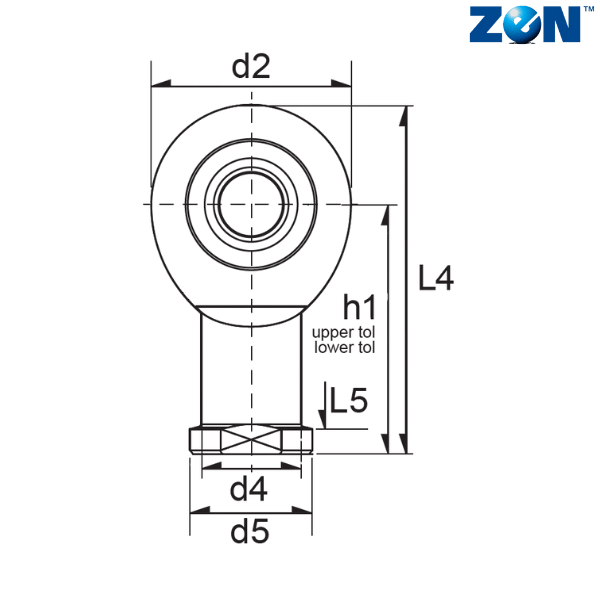

d (mm) - 45
d2 (mm) - 102
L4 (mm) - 196
B (mm) - 32
C1 (mm) - 27
d3 - M42x3
d4 (mm) - 58
d5 (mm) - 70
dk (mm) - 60
h1 (mm) - 145
L3 (mm) - 65
L5 (mm) - 20
W (mm) - 60
α - 7
Weight (kg) - 2.5
Dynamic Load Rating (N) - 324000
Static Laod Rating (N) - 233100
Notes :
2RS - Rubber Seals
Maintenance-Free Rod Ends
** Images are for representation purposes only
