Description
Brand - ZEN
Item Number - GIR40-UK-2RS ZEN
Category - Rod Ends

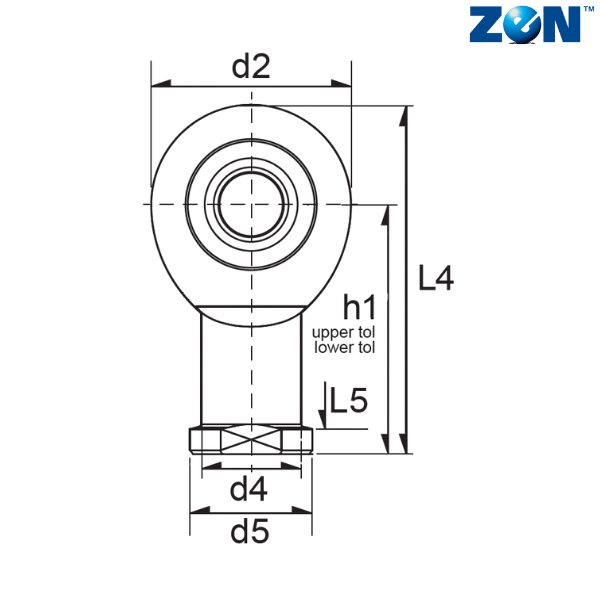

d (mm) - 40
d2 (mm) - 92
L4 (mm) - 188
B (mm) - 28
C1 (mm) - 23
d3 - M39x3
d4 (mm) - 52
d5 (mm) - 65
dk (mm) - 53
h1 (mm) - 142
L3 (mm) - 65
L5 (mm) - 18
W (mm) - 55
α - 7
Weight (kg) - 2
Dynamic Load Rating (N) - 252000
Static Laod Rating (N) - 174600
Notes :
2RS - Rubber Seals
Maintenance-Free Rod Ends
** Images are for representation purposes only
