Description
Brand - ZEN
Item Number - GIR35-DO-2RS ZEN
Category - Rod Ends

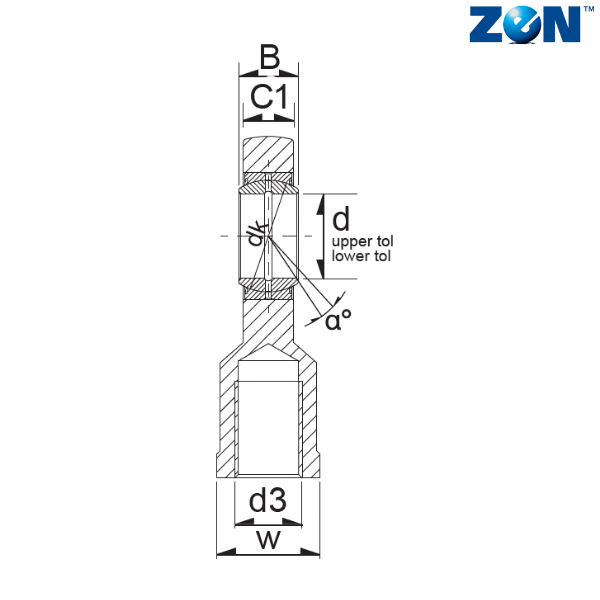

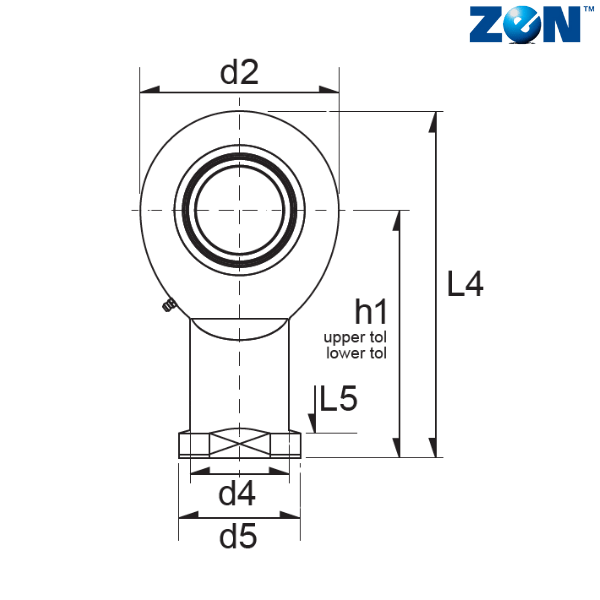

d (mm) - 35
d2 (mm) - 82
L4 (mm) - 166
B (mm) - 25
C1 (mm) - 21
D (mm) - 55
d1 (mm) - 39.8
d3 - M36X3
d4 (mm) - 47
d5 (mm) - 58
dk (mm) - 47
h1 (mm) - 125
L3 (mm) - 60
L5 (mm) - 15
L7 (mm) - 42
R1 (mm) - 0.6
W (mm) - 50
α - 6
Weight (kg) - 1.43
Dynamic Load Rating (N) - 71910
Static Load Rating (N) - 143100
Radial Clearance - 0.037-0.10
Notes :
2RS - Rubber Seals
Requiring Maintenance
** Images are for representation purposes only
