Description
Brand - ZEN
Item Number - GIR25-UK ZEN
Category - Rod Ends

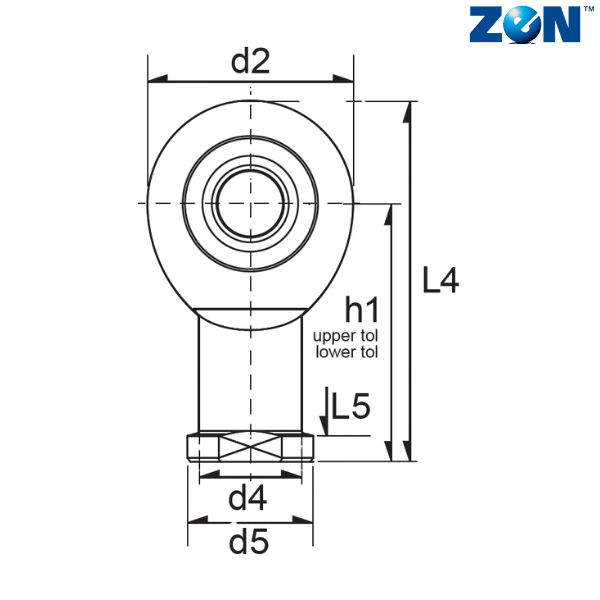

d (mm) - 25
d2 (mm) - 64
L4 (mm) - 126
B (mm) - 20
C1 (mm) - 17
d3 - M24x2
d4 (mm) - 33.5
d5 (mm) - 42
dk (mm) - 35.5
h1 (mm) - 94
L3 (mm) - 48
L5 (mm) - 12
W (mm) - 36
α - 7
Weight (kg) - 0.64
Dynamic Load Rating (N) - 45900
Static Laod Rating (N) - 94500
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
