Description
Brand - ZEN
Item Number - GIR20-UK-2RS ZEN
Category - Rod Ends

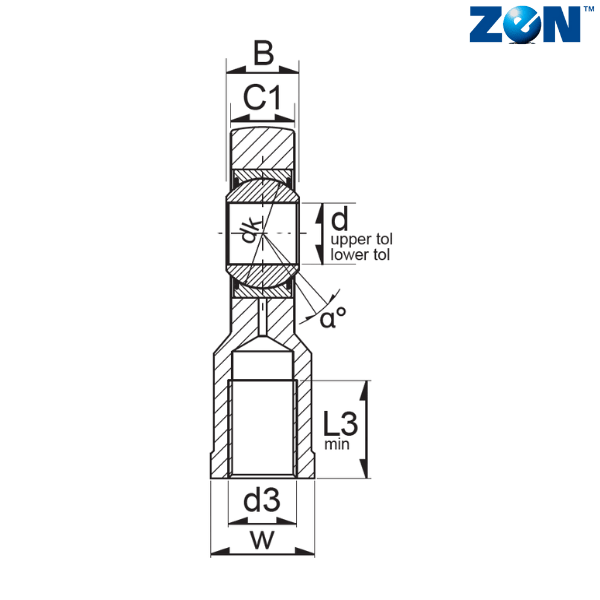

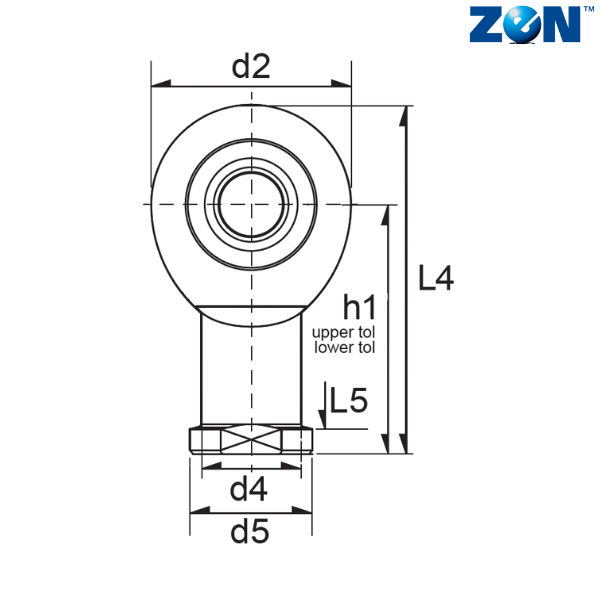

d (mm) - 20
d2 (mm) - 53
L4 (mm) - 103.5
B (mm) - 16
C1 (mm) - 13
d3 - M20x1.5
d4 (mm) - 27.5
d5 (mm) - 35
dk (mm) - 29
h1 (mm) - 77
L3 (mm) - 40
L5 (mm) - 10
W (mm) - 32
α - 9
Weight (kg) - 0.35
Dynamic Load Rating (N) - 28170
Static Laod Rating (N) - 68040
Notes :
2RS - Rubber Seals
Maintenance-Free Rod Ends
** Images are for representation purposes only
