Description
Brand - ZEN
Item Number - GIR20-DO ZEN
Category - Rod Ends

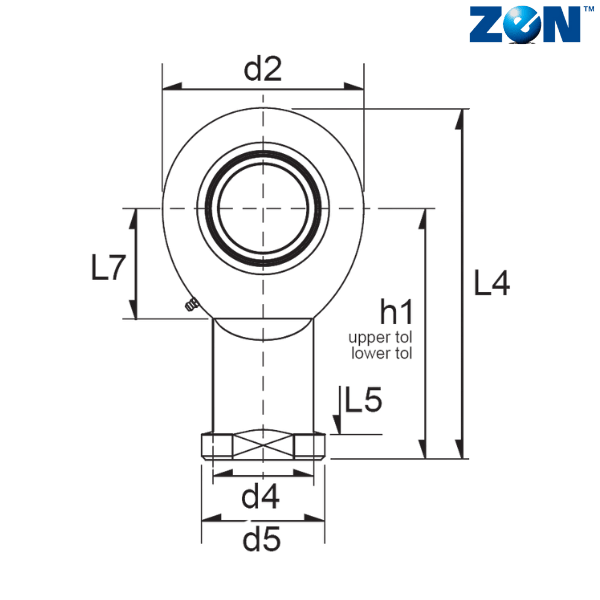

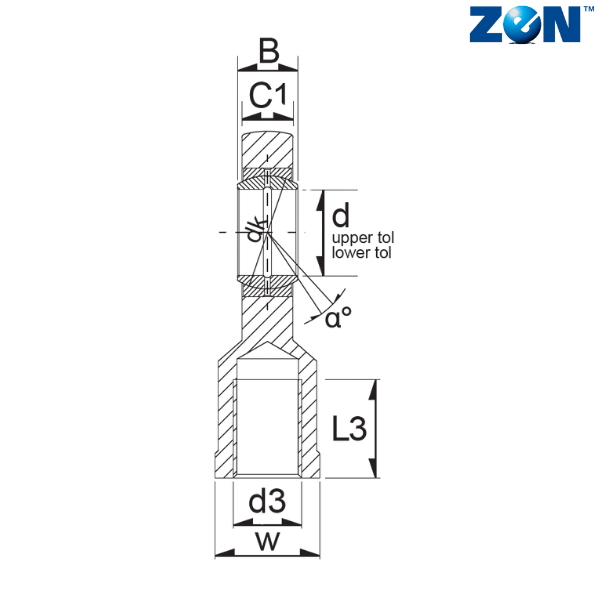

d (mm) - 20
d2 (mm) - 53
L4 (mm) - 103.5
B (mm) - 16
C1 (mm) - 13
D (mm) - 35
d1 (mm) - 24.2
d3 - M20X1.5
d4 (mm) - 27.5
d5 (mm) - 35
dk (mm) - 29
h1 (mm) - 77
L3 (mm) - 40
L5 (mm) - 10
L7 (mm) - 27
R1 (mm) - 0.3
W (mm) - 32
α - 9
Weight (kg) - 0.36
Dynamic Load Rating (N) - 26640
Static Load Rating (N) - 68040
Radial Clearance - 0.030-0.082
Notes :
Requiring Maintenance
** Images are for representation purposes only
