Description
Brand - ZEN
Item Number - GIR17-UK ZEN
Category - Rod Ends

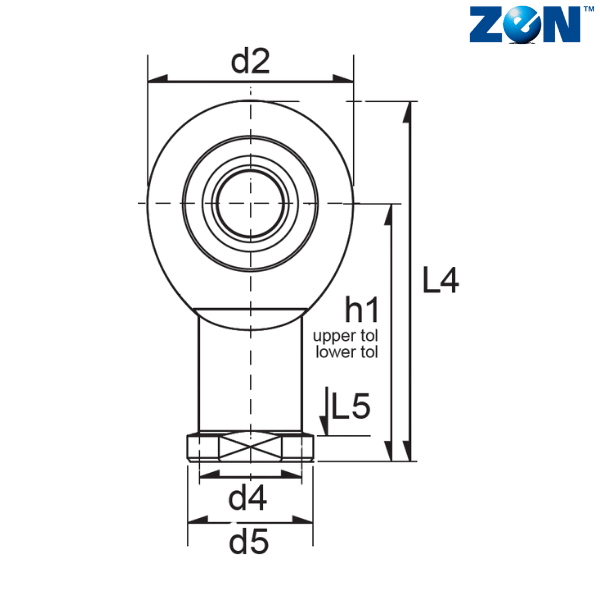

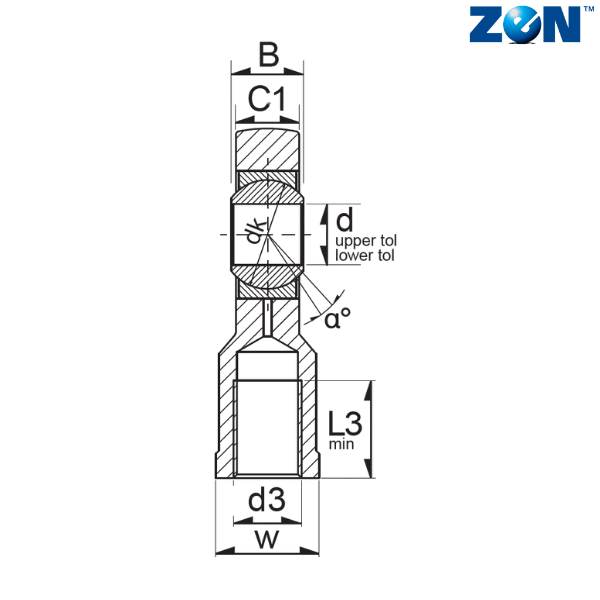

d (mm) - 17
d2 (mm) - 46
L4 (mm) - 90
B (mm) - 14
C1 (mm) - 11
d3 - M16
d4 (mm) - 24
d5 (mm) - 30
dk (mm) - 25
h1 (mm) - 67
L3 (mm) - 34
L5 (mm) - 10
W (mm) - 27
α - 10
Weight (kg) - 0.22
Dynamic Load Rating (N) - 20250
Static Laod Rating (N) - 50850
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
