Description
Brand - ZEN
Item Number - GIR15-UK ZEN
Category - Rod Ends

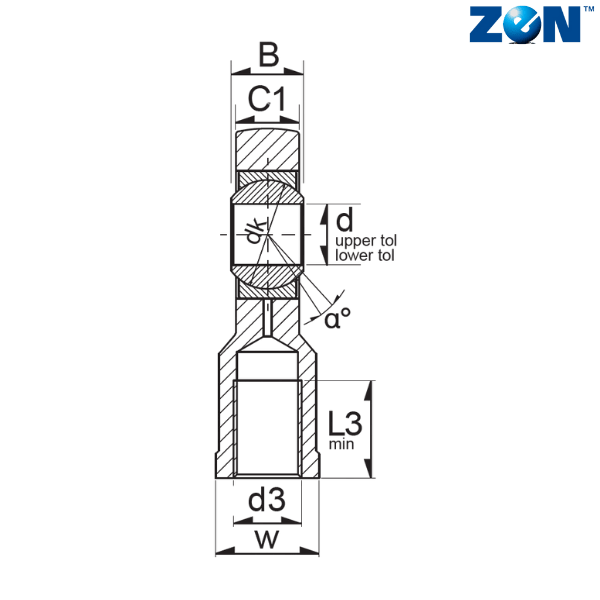

d (mm) - 15

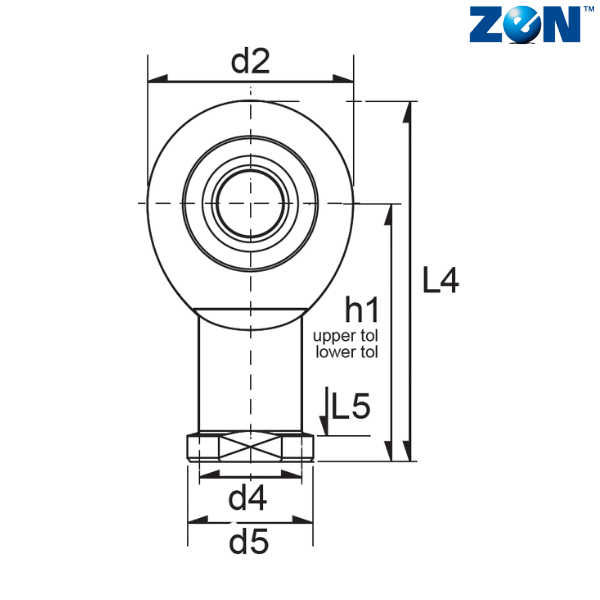

d2 (mm) - 40
L4 (mm) - 81
B (mm) - 12
C1 (mm) - 10
d3 - M14
d4 (mm) - 21
d5 (mm) - 26
dk (mm) - 22
h1 (mm) - 61
L3 (mm) - 30
L5 (mm) - 8
W (mm) - 22
α - 8
Weight (kg) - 0.18
Dynamic Load Rating (N) - 16020
Static Laod Rating (N) - 40320
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
