Description
Brand - ZEN
Item Number - GIR12-DO ZEN
Category - Rod Ends

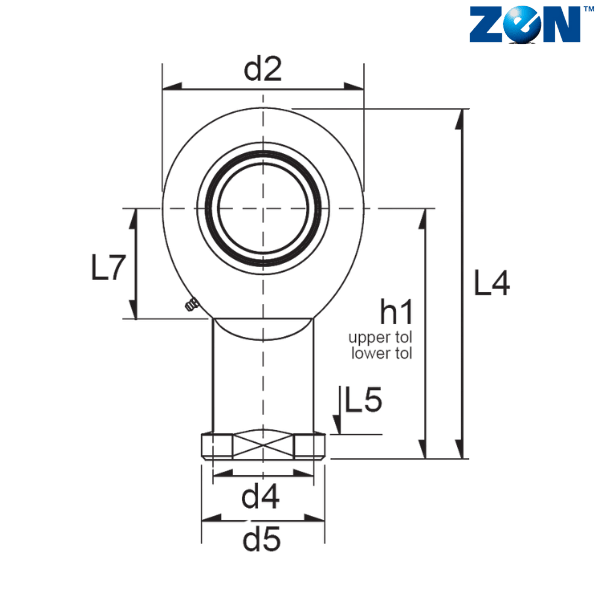

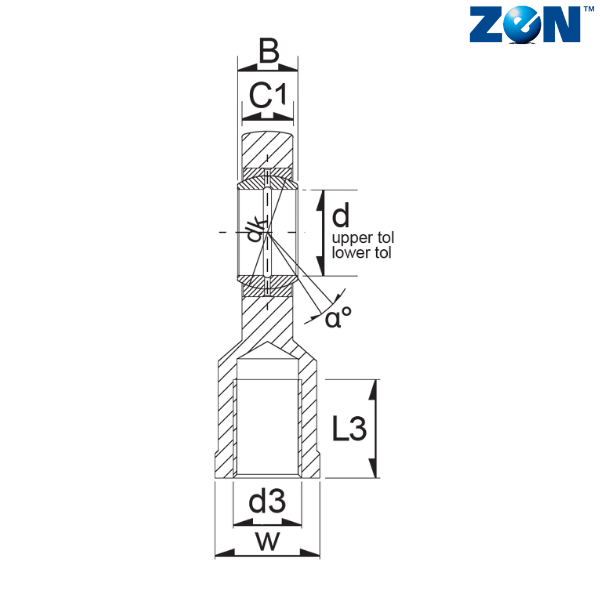

d (mm) - 12
d2 (mm) - 34
L4 (mm) - 67
B (mm) - 10
C1 (mm) - 8
D (mm) - 22
d1 (mm) - 14.9
d3 - M12
d4 (mm) - 17.5
d5 (mm) - 22
dk (mm) - 18
h1 (mm) - 50
L3 (mm) - 23
L5 (mm) - 6.5
L7 (mm) - 18
R1 (mm) - 0.3
W (mm) - 19
α - 11
Weight (kg) - 0.1
Dynamic Load Rating (N) - 9720
Static Load Rating (N) - 27360
Radial Clearance - 0.023-0.068
Notes :
Requiring Maintenance
** Images are for representation purposes only
