Description
Brand - ZEN
Item Number - GIR10-DO ZEN
Category - Rod Ends

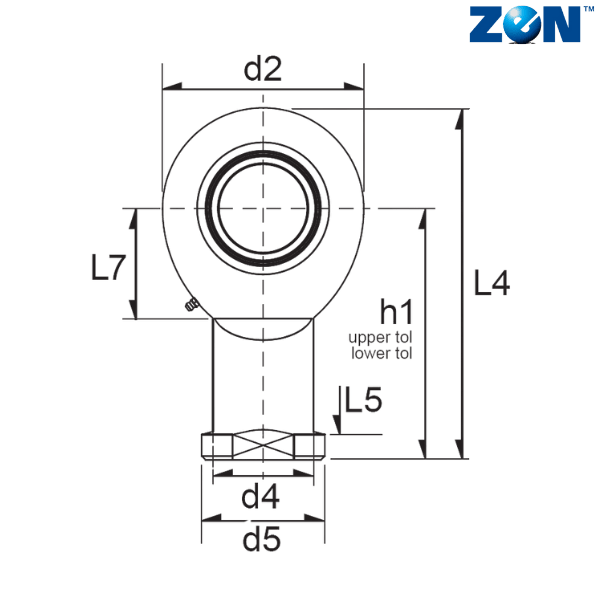

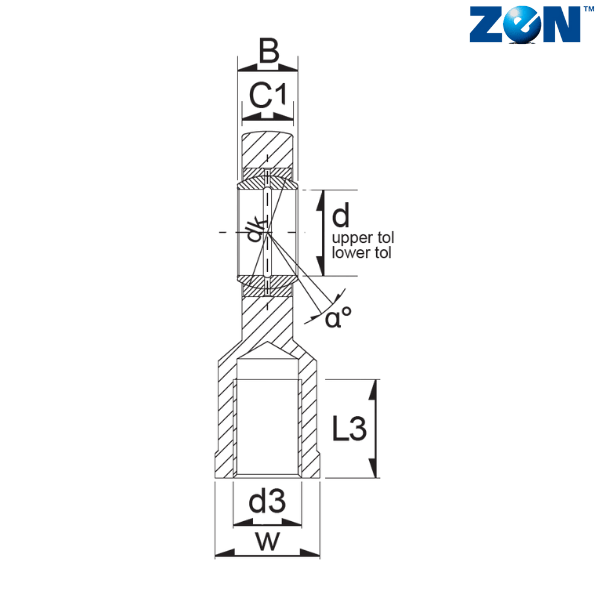

d (mm) - 10
d2 (mm) - 29
L4 (mm) - 57.5
B (mm) - 9
C1 (mm) - 7
D (mm) - 19
d1 (mm) - 13.2
d3 - M10
d4 (mm) - 15
d5 (mm) - 19
dk (mm) - 16
h1 (mm) - 43
L3 (mm) - 20
L5 (mm) - 6.5
L7 (mm) - 15
R1 (mm) - 0.3
W (mm) - 17
α - 12
Weight (kg) - 0.066
Dynamic Load Rating (N) - 7344
Static Load Rating (N) - 19800
Radial Clearance - 0.023-0.068
Notes :
Requiring Maintenance
** Images are for representation purposes only
