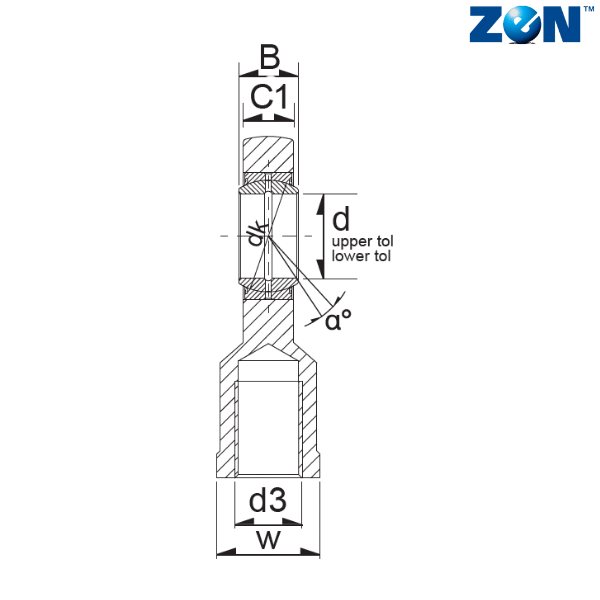

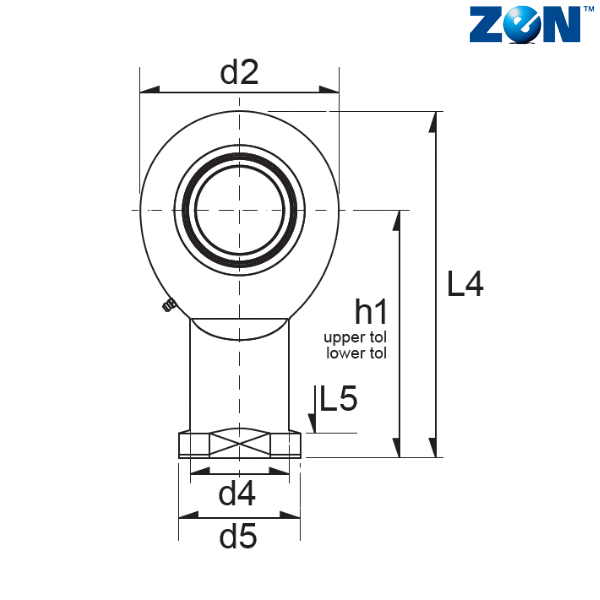

Description
Brand - ZEN
Item Number - GIL80-DO-2RS ZEN
Category - Rod Ends
d (mm) - 80
d2 (mm) - 180
L4 (mm) - 320
B (mm) - 55
C1 (mm) - 47
D (mm) - 120
d1 (mm) - 89.4
d3 - M64X4
d4 (mm) - 95
d5 (mm) - 110
dk (mm) - 105
h1 (mm) - 230
L3 (mm) - 85
L5 (mm) - 25
L7 (mm) - 100
R1 (mm) - 1
W (mm) - 100
α - 6
Weight (kg) - 13.2
Dynamic Load Rating (N) - 361800
Static Load Rating (N) - 621000
Radial Clearance - 0.055-0.142
Notes :
2RS - Rubber Seals
Requiring Maintenance
** Images are for representation purposes only
