Description
Brand - ZEN
Item Number - GIL8-UK ZEN
Category - Rod Ends

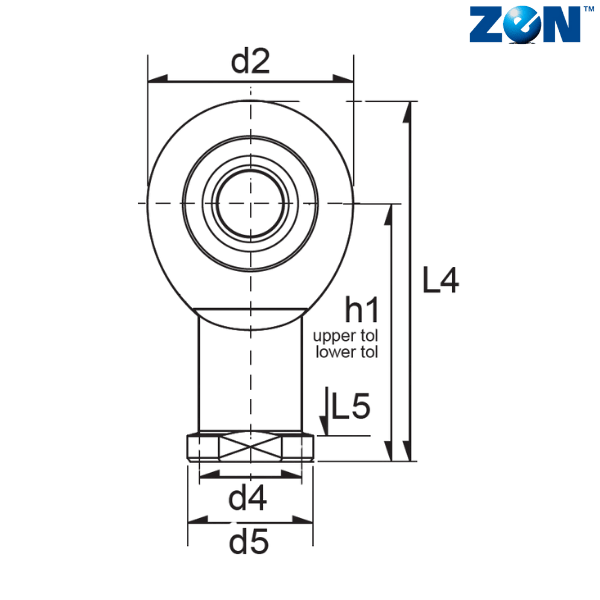

d (mm) - 8
d2 (mm) - 24
L4 (mm) - 48
B (mm) - 8
C1 (mm) - 6
d3 - M8
d4 (mm) - 12.5
d5 (mm) - 16
dk (mm) - 13
h1 (mm) - 36
L3 (mm) - 15
L5 (mm) - 5
W (mm) - 14
α - 15
Weight (kg) - 0.039
Dynamic Load Rating (N) - 5265
Static Laod Rating (N) - 14400
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
