Description
Brand - ZEN
Item Number - GIL8-DO ZEN
Category - Rod Ends

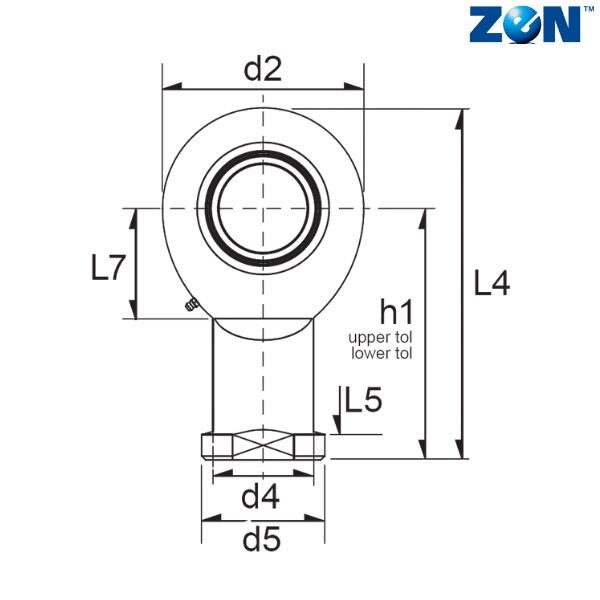

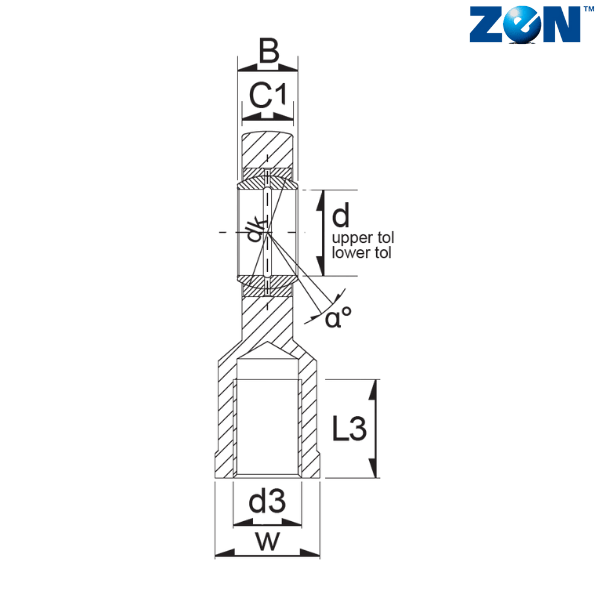

d (mm) - 8
d2 (mm) - 24
L4 (mm) - 48
B (mm) - 8
C1 (mm) - 6
D (mm) - 16
d1 (mm) - 10.2
d3 - M8
d4 (mm) - 12.5
d5 (mm) - 16
dk (mm) - 13
h1 (mm) - 36
L3 (mm) - 15
L5 (mm) - 5
L7 (mm) - 14
R1 (mm) - 0.3
W (mm) - 14
α - 15
Weight (kg) - 0.039
Dynamic Load Rating (N) - 5031
Static Load Rating (N) - 14400
Radial Clearance - 0.023-0.068
Notes :
Requiring Maintenance
** Images are for representation purposes only
