Description
Brand - ZEN
Item Number - GIL60-UK-2RS ZEN
Category - Rod Ends

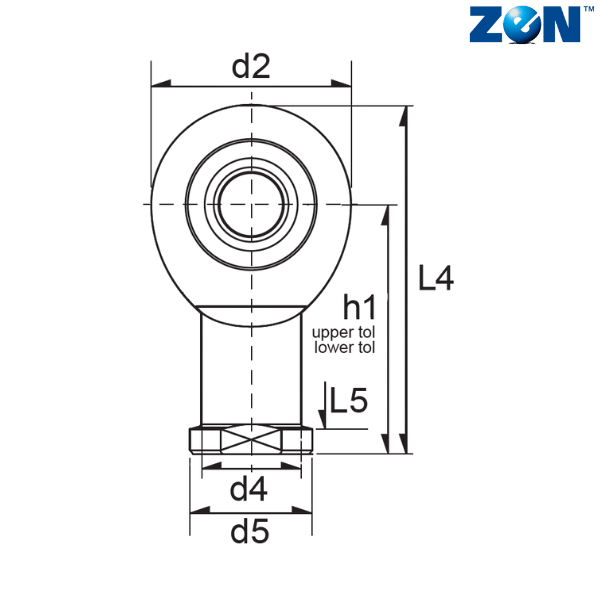

d (mm) - 60
d2 (mm) - 135
L4 (mm) - 242.5
B (mm) - 44
C1 (mm) - 38
d3 - M52x3
d4 (mm) - 70
d5 (mm) - 88
dk (mm) - 80
h1 (mm) - 175
L3 (mm) - 70
L5 (mm) - 20
W (mm) - 75
α - 6
Weight (kg) - 5.5
Dynamic Load Rating (N) - 621000
Static Laod Rating (N) - 436500
Notes :
2RS - Rubber Seals
Maintenance-Free Rod Ends
** Images are for representation purposes only
