Description
Brand - ZEN
Item Number - GIL60-DO-2RS ZEN
Category - Rod Ends

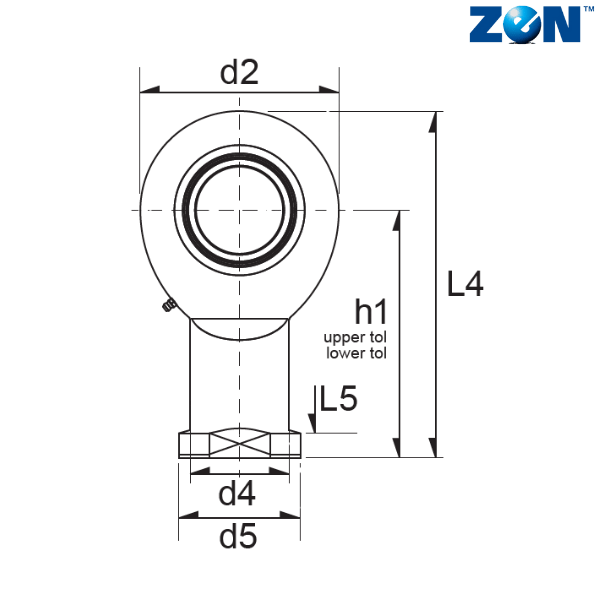

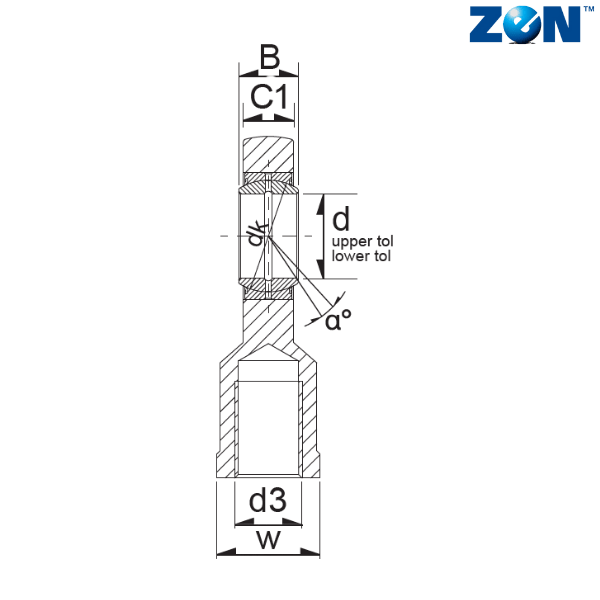

d (mm) - 60
d2 (mm) - 135
L4 (mm) - 242.5
B (mm) - 44
C1 (mm) - 38
D (mm) - 90
d1 (mm) - 66.8
d3 - M52X3
d4 (mm) - 70
d5 (mm) - 88
dk (mm) - 80
h1 (mm) - 175
L3 (mm) - 70
L5 (mm) - 20
L7 (mm) - 75
R1 (mm) - 1
W (mm) - 75
α - 6
Weight (kg) - 5.6
Dynamic Load Rating (N) - 220500
Static Load Rating (N) - 436500
Radial Clearance - 0.043-0.12
Notes :
2RS - Rubber Seals
Requiring Maintenance
** Images are for representation purposes only
