Description
Brand - ZEN
Item Number - GIL45-DO-2RS ZEN
Category - Rod Ends

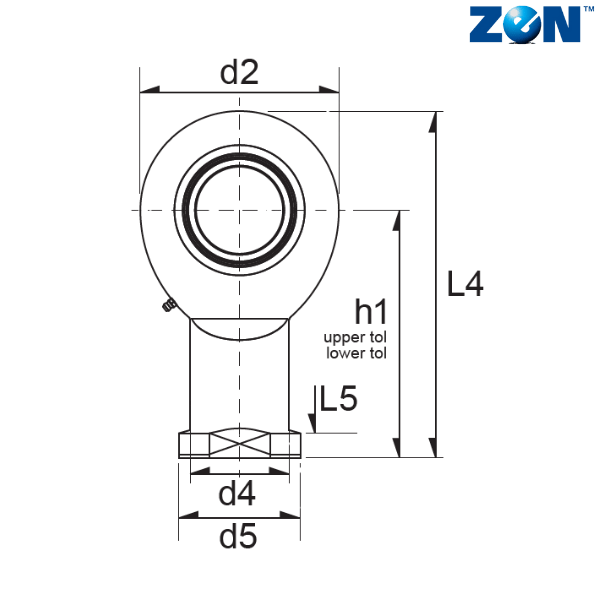

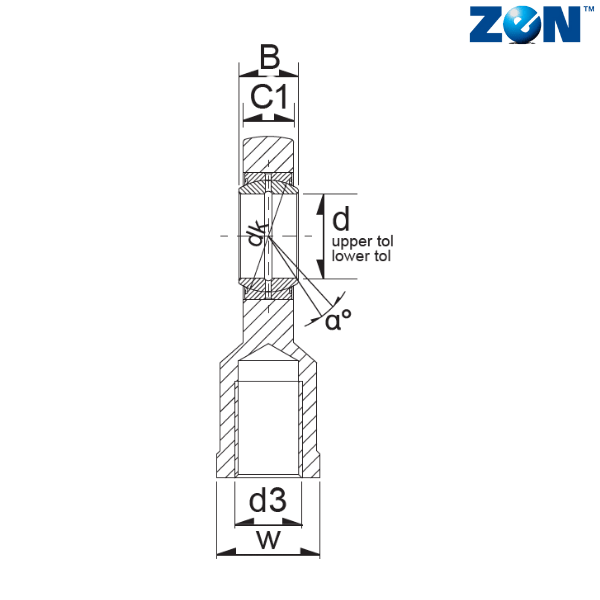

d (mm) - 45
d2 (mm) - 102
L4 (mm) - 196
B (mm) - 32
C1 (mm) - 27
D (mm) - 68
d1 (mm) - 50.8
d3 - M42X3
d4 (mm) - 58
d5 (mm) - 70
dk (mm) - 60
h1 (mm) - 145
L3 (mm) - 65
L5 (mm) - 20
L7 (mm) - 52
R1 (mm) - 0.6
W (mm) - 60
α - 7
Weight (kg) - 2.7
Dynamic Load Rating (N) - 115200
Static Load Rating (N) - 233100
Radial Clearance - 0.043-0.12
Notes :
2RS - Rubber Seals
Requiring Maintenance
** Images are for representation purposes only
