Description
Brand - ZEN
Item Number - GIL35-UK-2RS ZEN
Category - Rod Ends

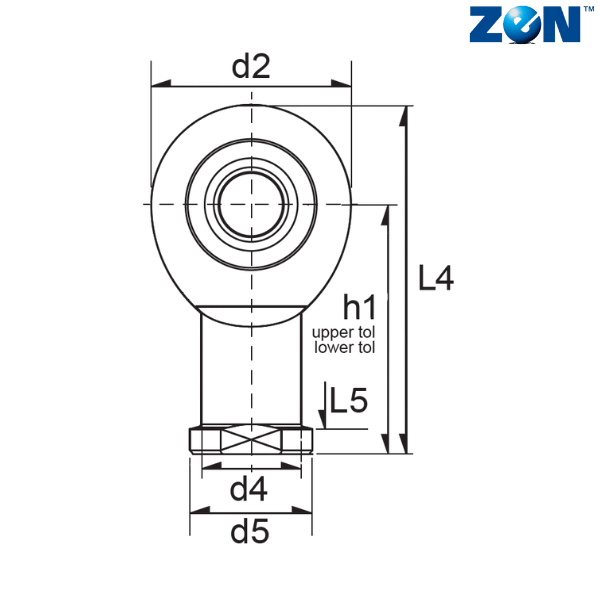

d (mm) - 35
d2 (mm) - 82
L4 (mm) - 166
B (mm) - 25
C1 (mm) - 21
d3 - M36x3
d4 (mm) - 47
d5 (mm) - 58
dk (mm) - 47
h1 (mm) - 125
L3 (mm) - 60
L5 (mm) - 15
W (mm) - 50
α - 6
Weight (kg) - 1.3
Dynamic Load Rating (N) - 189000
Static Laod Rating (N) - 143100
Notes :
2RS - Rubber Seals
Maintenance-Free Rod Ends
** Images are for representation purposes only
