Description
Brand - ZEN
Item Number - GIL30-UK ZEN
Category - Rod Ends

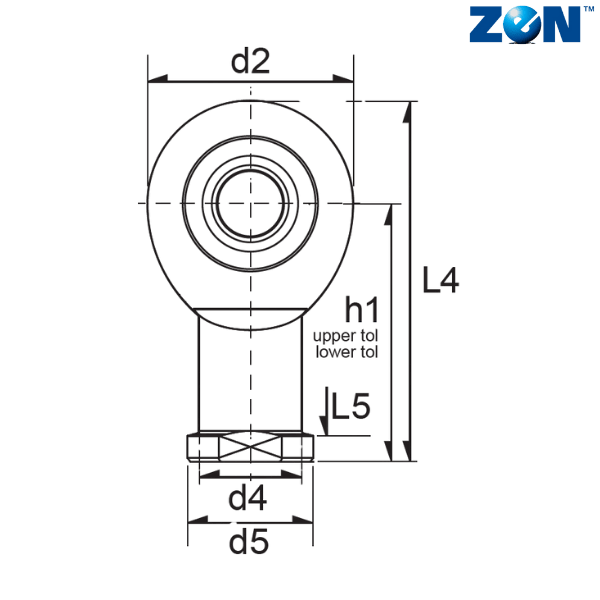

d (mm) - 30
d2 (mm) - 73
L4 (mm) - 146.5
B (mm) - 22
C1 (mm) - 19
d3 - M30x2
d4 (mm) - 40
d5 (mm) - 50
dk (mm) - 40.7
h1 (mm) - 110
L3 (mm) - 56
L5 (mm) - 15
W (mm) - 41
α - 6
Weight (kg) - 0.93
Dynamic Load Rating (N) - 59310
Static Laod Rating (N) - 125100
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
