Description
Brand - ZEN
Item Number - GIL30-DO-2RS ZEN
Category - Rod Ends

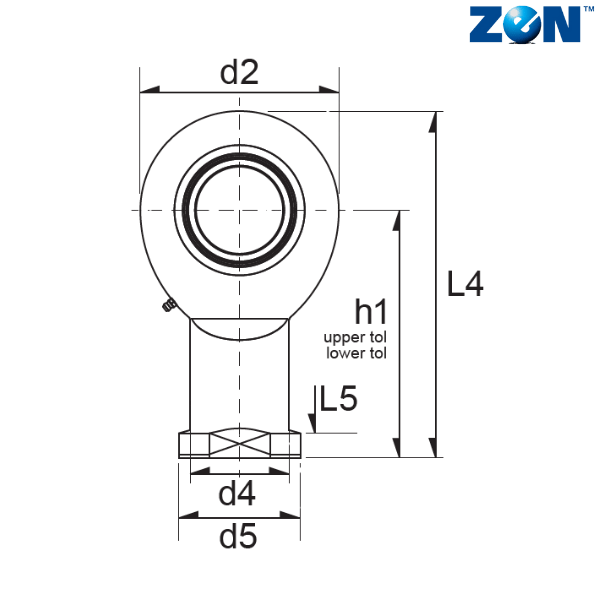

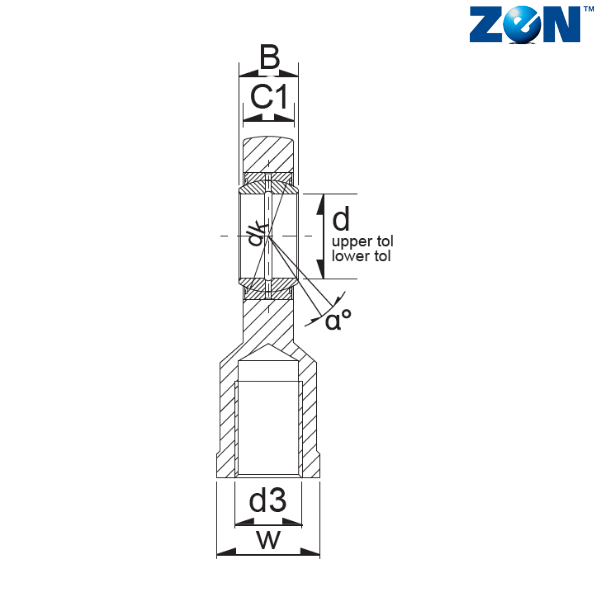

d (mm) - 30
d2 (mm) - 73
L4 (mm) - 146.5
B (mm) - 22
C1 (mm) - 19
D (mm) - 47
d1 (mm) - 34.2
d3 - M30X2
d4 (mm) - 40
d5 (mm) - 50
dk (mm) - 40.7
h1 (mm) - 110
L3 (mm) - 56
L5 (mm) - 15
L7 (mm) - 37
R1 (mm) - 0.6
W (mm) - 41
α - 6
Weight (kg) - 0.98
Dynamic Load Rating (N) - 56070
Static Load Rating (N) - 107100
Radial Clearance - 0.037-0.10
Notes :
2RS - Rubber Seals
Requiring Maintenance
** Images are for representation purposes only
