Description
Brand - ZEN
Item Number - GIL17-DO ZEN
Category - Rod Ends

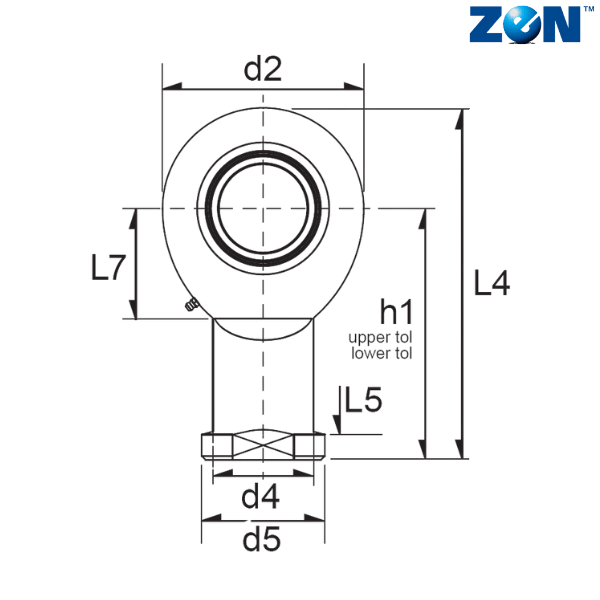

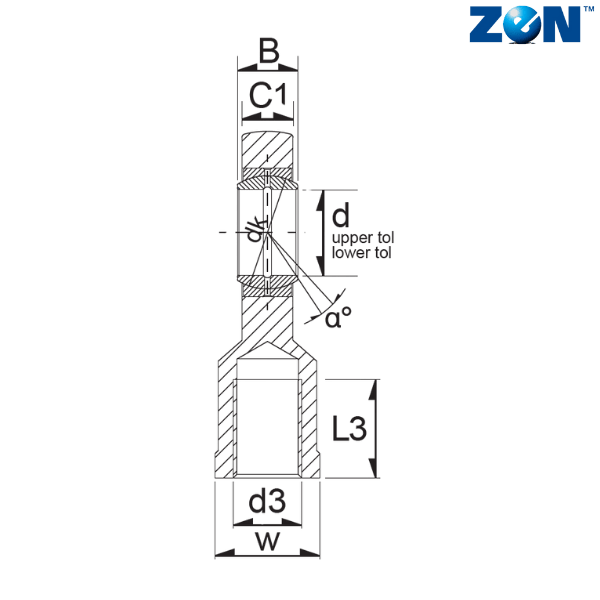

d (mm) - 17
d2 (mm) - 46
L4 (mm) - 90
B (mm) - 14
C1 (mm) - 11
D (mm) - 30
d1 (mm) - 20.7
d3 - M16
d4 (mm) - 24
d5 (mm) - 30
dk (mm) - 25
h1 (mm) - 67
L3 (mm) - 34
L5 (mm) - 10
L7 (mm) - 23
R1 (mm) - 0.3
W (mm) - 27
α - 10
Weight (kg) - 0.25
Dynamic Load Rating (N) - 19170
Static Load Rating (N) - 50850
Radial Clearance - 0.030-0.082
Notes :
Requiring Maintenance
** Images are for representation purposes only
