Description
Brand - ZEN
Item Number - GIL15-DO ZEN
Category - Rod Ends

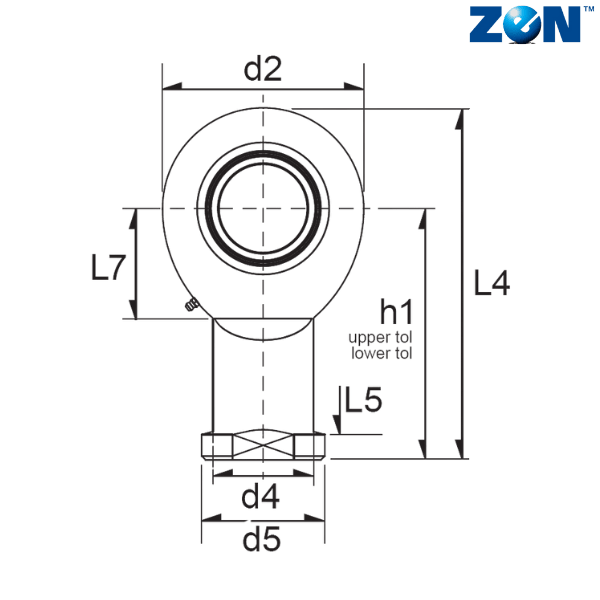

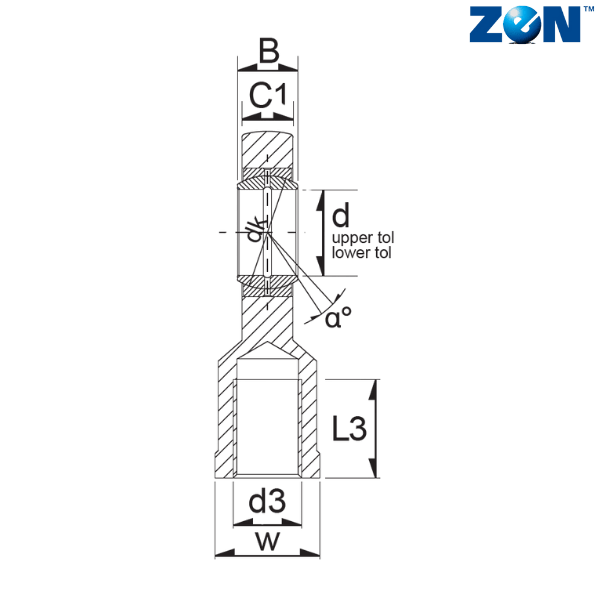

d (mm) - 15
d2 (mm) - 40
L4 (mm) - 81
B (mm) - 12
C1 (mm) - 10
D (mm) - 26
d1 (mm) - 18.4
d3 - M14
d4 (mm) - 21
d5 (mm) - 26
dk (mm) - 22
h1 (mm) - 61
L3 (mm) - 30
L5 (mm) - 8
L7 (mm) - 20
R1 (mm) - 0.3
W (mm) - 22
α - 8
Weight (kg) - 0.18
Dynamic Load Rating (N) - 15210
Static Load Rating (N) - 40320
Radial Clearance - 0.030-0.082
Notes :
Requiring Maintenance
** Images are for representation purposes only
