Description
Brand - ZEN
Item Number - GIL12-UK ZEN
Category - Rod Ends

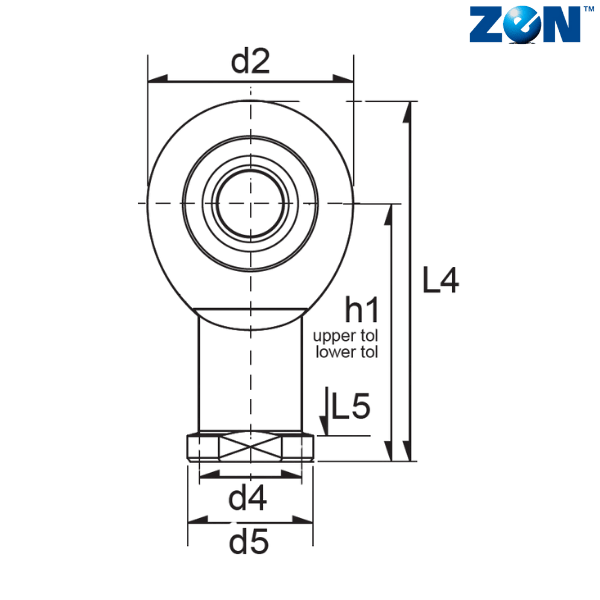

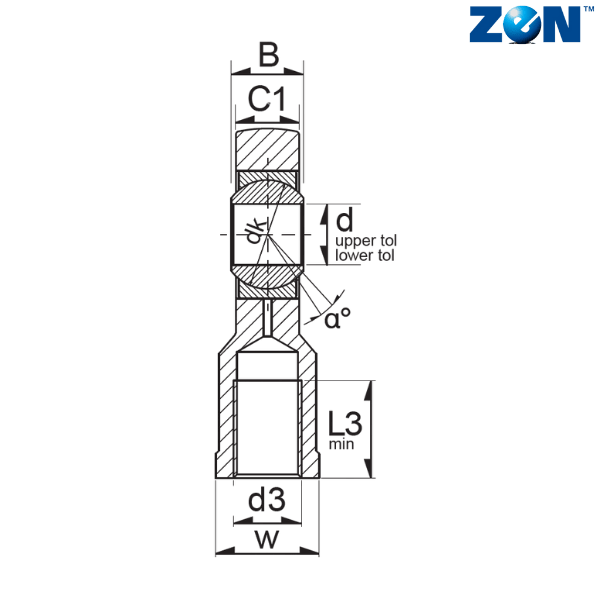

d (mm) - 12
d2 (mm) - 34
L4 (mm) - 67
B (mm) - 10
C1 (mm) - 8
d3 - M12
d4 (mm) - 17.5
d5 (mm) - 22
dk (mm) - 18
h1 (mm) - 50
L3 (mm) - 23
L5 (mm) - 6.5
W (mm) - 19
α - 11
Weight (kg) - 0.096
Dynamic Load Rating (N) - 10170
Static Laod Rating (N) - 27360
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
