Description
Brand - ZEN
Item Number - GIL10-UK ZEN
Category - Rod Ends

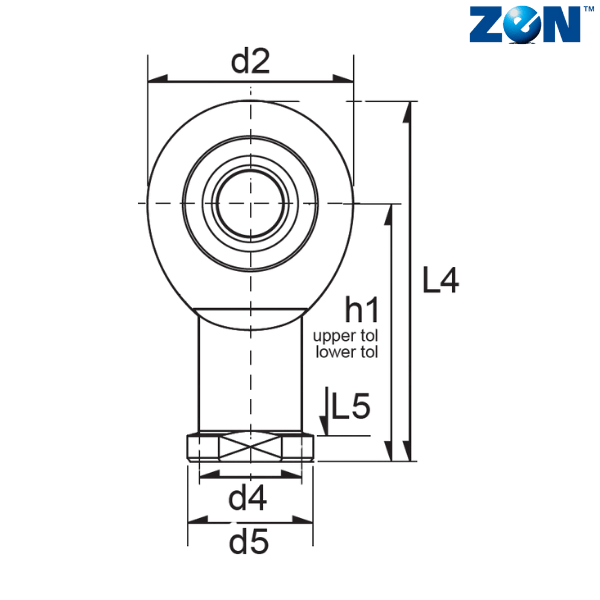

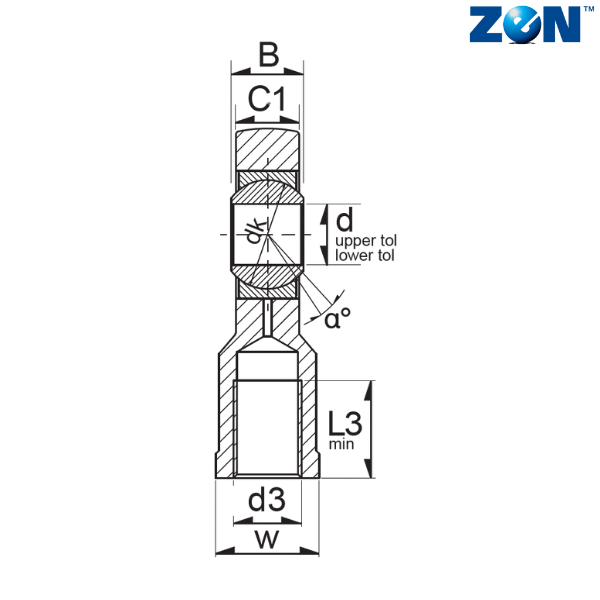

d (mm) - 10
d2 (mm) - 29
L4 (mm) - 57.5
B (mm) - 9
C1 (mm) - 7
d3 - M10
d4 (mm) - 15
d5 (mm) - 19
dk (mm) - 16
h1 (mm) - 43
L3 (mm) - 20
L5 (mm) - 6.5
W (mm) - 17
α - 12
Weight (kg) - 0.061
Dynamic Load Rating (N) - 7776
Static Laod Rating (N) - 19800
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
