Description
Brand - ZEN
Item Number - GIKSR8-PS ZEN
Category - Rod Ends

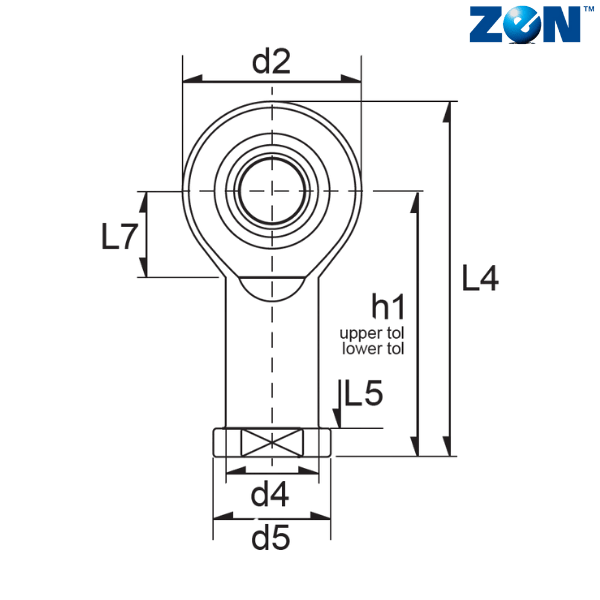

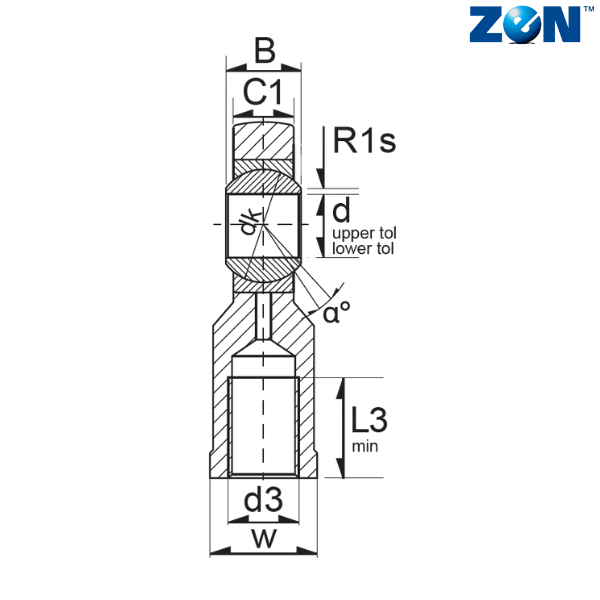

d (mm) - 8
d2 (mm) - 25
L4 (mm) - 48.5
B (mm) - 12
C1 (mm) - 9
D (mm) - 19
d1 (mm) - 10.3
d3 - M8
d4 (mm) - 12.5
d5 (mm) - 16
dk (mm) - 15.8
h1 (mm) - 36
L3 (mm) - 12
L5 (mm) - 5
L7 (mm) - 12
R1 (mm) - 0.3
W (mm) - 14
α - 13
Weight (kg) - 0.043
Dynamic Load Rating (N) - 11610
Static Laod Rating (N) - 5130
Radial Clearance - 0.005 - 0.040
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
