Description
Brand - ZEN
Item Number - GIKSR6-PS ZEN
Category - Rod Ends

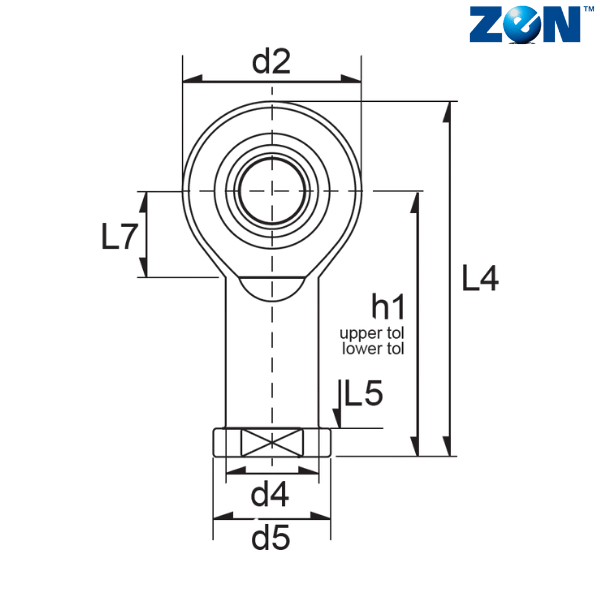

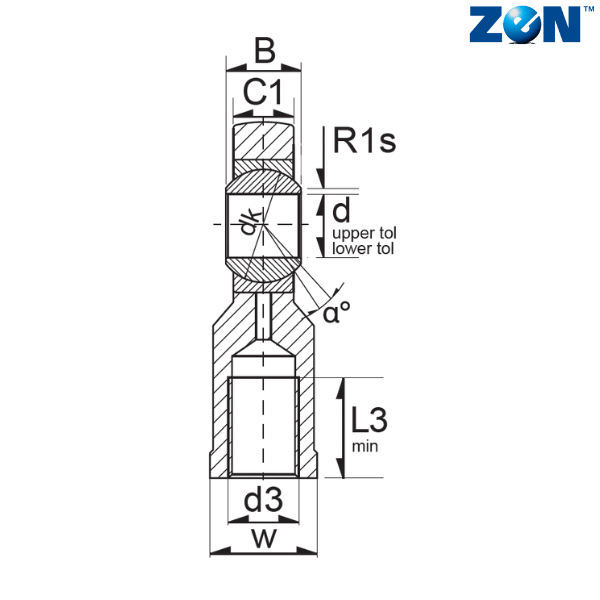

d (mm) - 6
d2 (mm) - 21
L4 (mm) - 40.5
B (mm) - 9
C1 (mm) - 6.75
D (mm) - 16
d1 (mm) - 8.9
d3 - M6
d4 (mm) - 10
d5 (mm) - 13
dk (mm) - 12.7
h1 (mm) - 30
L3 (mm) - 9
L5 (mm) - 5
L7 (mm) - 10
R1 (mm) - 0.3
W (mm) - 11
α - 13
Weight (kg) - 0.025
Dynamic Load Rating (N) - 6885
Static Laod Rating (N) - 3060
Radial Clearance - 0.003 - 0.035
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
