Description
Brand - ZEN
Item Number - GIKSR5-PS ZEN
Category - Rod Ends

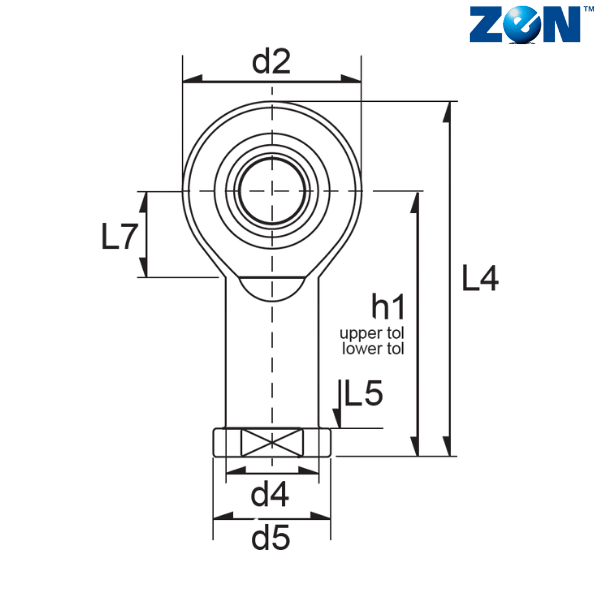

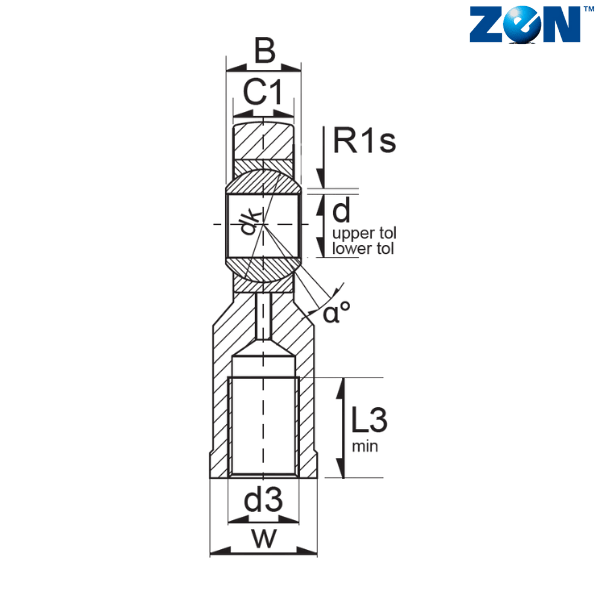

d (mm) - 5
d2 (mm) - 19
L4 (mm) - 36.5
B (mm) - 8
C1 (mm) - 6
D (mm) - 13
d1 (mm) - 7.7
d3 - M5
d4 (mm) - 9
d5 (mm) - 11
dk (mm) - 11.1
h1 (mm) - 27
L3 (mm) - 8
L5 (mm) - 4
L7 (mm) - 9
R1 (mm) - 0.3
W (mm) - 9
α - 13
Weight (kg) - 0.017
Dynamic Load Rating (N) - 5400
Static Laod Rating (N) - 3420
Radial Clearance - 0.003 - 0.035
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
