Description
Brand - ZEN
Item Number - GIKSR30-PS ZEN
Category - Rod Ends

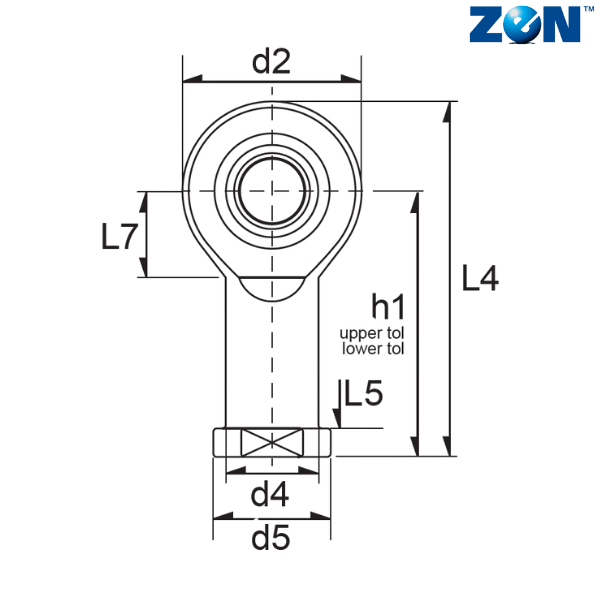

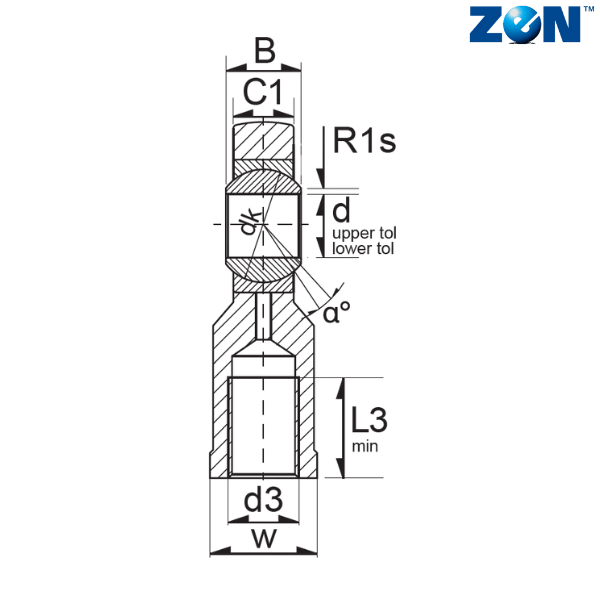

d (mm) - 30
d2 (mm) - 71
L4 (mm) - 145.5
B (mm) - 37
C1 (mm) - 25
D (mm) - 55
d1 (mm) - 34.8
d3 - M30X2
d4 (mm) - 40
d5 (mm) - 50
dk (mm) - 50.8
h1 (mm) - 110
L3 (mm) - 45
L5 (mm) - 15
L7 (mm) - 35
R1 (mm) - 0.3
W (mm) - 41
α - 15
Weight (kg) - 1.15
Dynamic Load Rating (N) - 102600
Static Laod Rating (N) - 42750
Radial Clearance - 0.010 - 0.055
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
