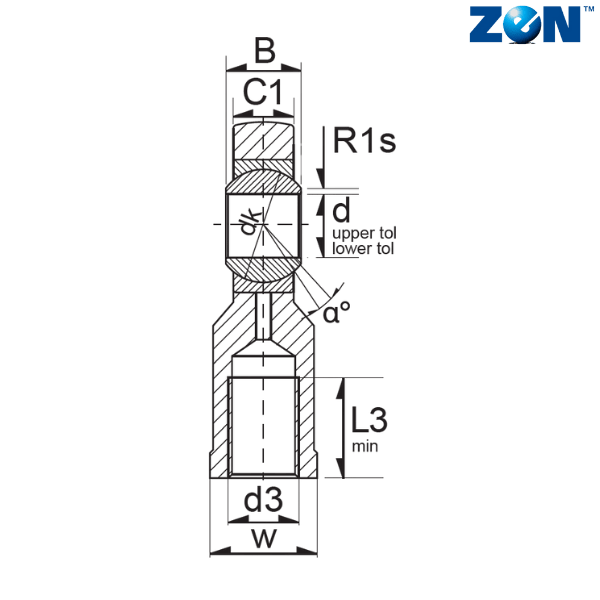

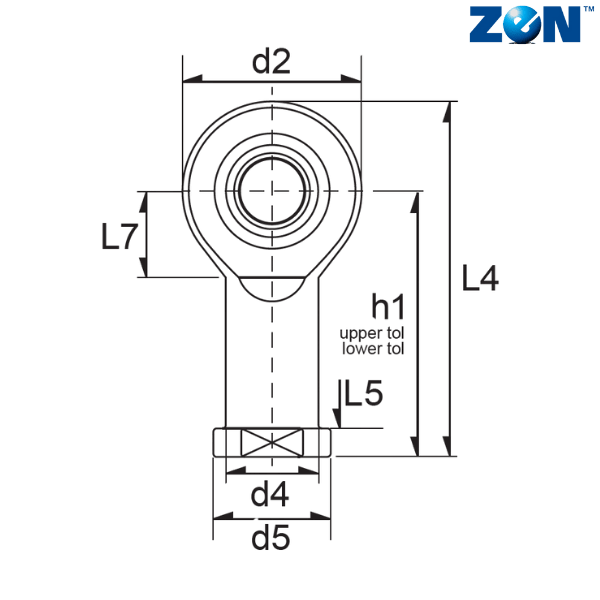

Description
Brand - ZEN
Item Number - GIKSR25-PS ZEN
Category - Rod Ends
d (mm) - 25
d2 (mm) - 61
L4 (mm) - 124.5
B (mm) - 31
C1 (mm) - 22
D (mm) - 47
d1 (mm) - 29.5
d3 - M24X2
d4 (mm) - 33.5
d5 (mm) - 42
dk (mm) - 42.8
h1 (mm) - 94
L3 (mm) - 36
L5 (mm) - 12
L7 (mm) - 30
R1 (mm) - 0.3
W (mm) - 36
α - 15
Weight (kg) - 0.65
Dynamic Load Rating (N) - 76500
Static Laod Rating (N) - 32580
Radial Clearance - 0.010 - 0.055
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
