Description
Brand - ZEN
Item Number - GIKSR22-PS ZEN
Category - Rod Ends

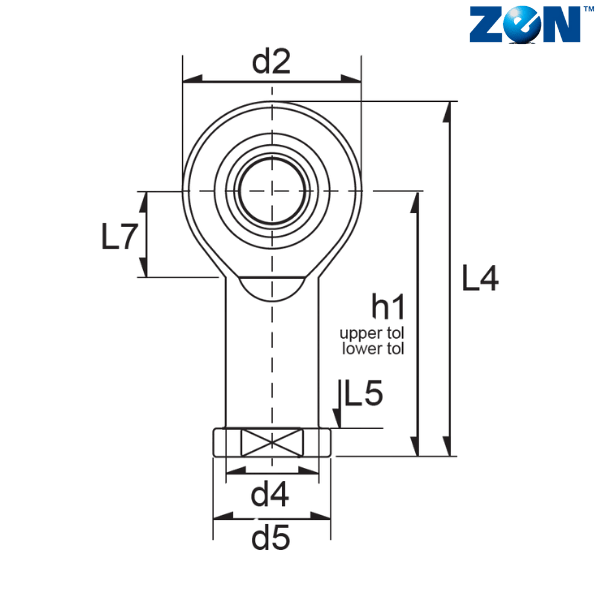

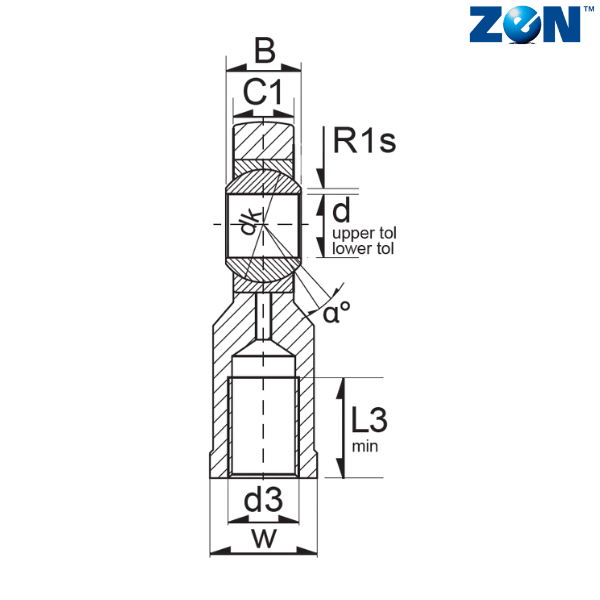

d (mm) - 22
d2 (mm) - 55
L4 (mm) - 111.5
B (mm) - 28
C1 (mm) - 20
D (mm) - 42
d1 (mm) - 25.8
d3 - M22X1.5
d4 (mm) - 30
d5 (mm) - 37
dk (mm) - 38.1
h1 (mm) - 84
L3 (mm) - 33
L5 (mm) - 12
L7 (mm) - 27
R1 (mm) - 0.3
W (mm) - 32
α - 15
Weight (kg) - 0.49
Dynamic Load Rating (N) - 61200
Static Laod Rating (N) - 27360
Radial Clearance - 0.010 - 0.055
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
