Description
Brand - ZEN
Item Number - GIKSR20-PS ZEN
Category - Rod Ends

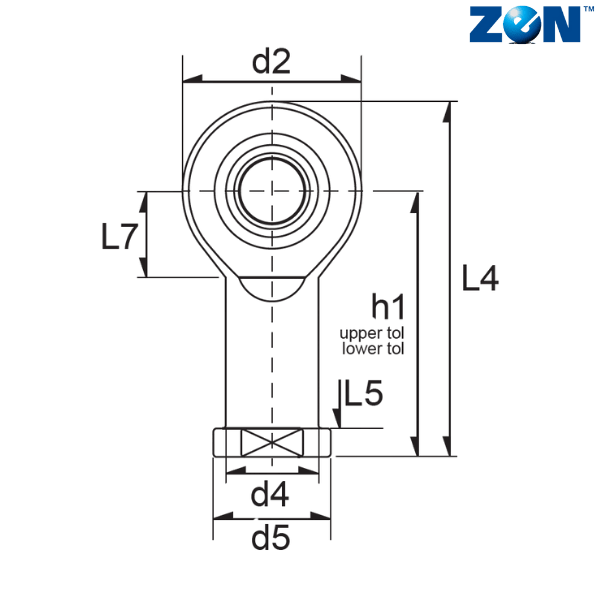

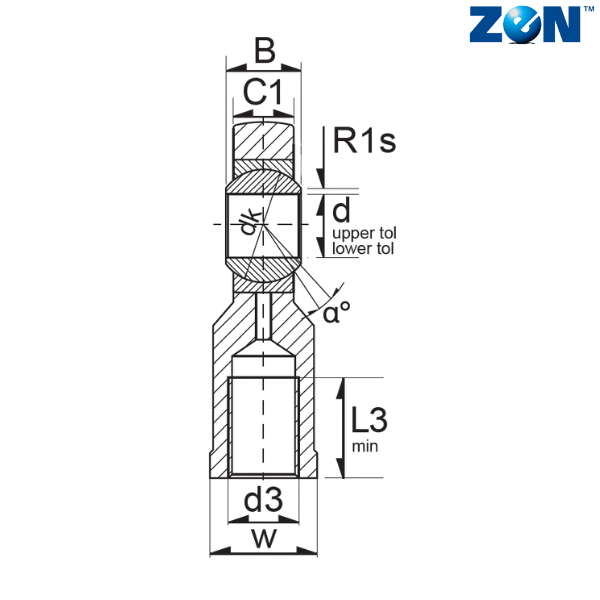

d (mm) - 20
d2 (mm) - 51
L4 (mm) - 102.5
B (mm) - 25
C1 (mm) - 18
D (mm) - 40
d1 (mm) - 24.3
d3 - M20X1.5
d4 (mm) - 27.5
d5 (mm) - 34
dk (mm) - 34.9
h1 (mm) - 77
L3 (mm) - 30
L5 (mm) - 10
L7 (mm) - 25
R1 (mm) - 0.3
W (mm) - 30
α - 15
Weight (kg) - 0.38
Dynamic Load Rating (N) - 51300
Static Laod Rating (N) - 20520
Radial Clearance - 0.010 - 0.055
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
